Bhansali Enterprise

Inconel sheet plate in United Arab Emirates

Country » Inconel Sheet Plate in United Arab Emirates

Inconel Sheet Plate In United Arab Emirates, Inconel Sheet, Inconel Plate, Inconel Plate Suppliers, Inconel Sheet Suppliers

Bhansali Enterprise is one of the well-known manufacturers and suppliers of Inconel Sheet Plates in the United Arab Emirates. It has established itself in the market by supplying the best quality products that fulfil various sectors’ requirements. Our Inconel Sheet Plates are manufactured and produced to the highest quality to provide the best strength, corrosion, heat resistance and durability for application in aerospace, chemical processing, marine and power generation sectors.

Inconel Sheet Plates are manufactured from Inconel alloys, made from nickel-chromium alloy, and have high oxidation and corrosion resistance and high temperature strength. The creation of Inconel alloys combines nickel and chromium with the occasional addition of molybdenum, making it very strong and durable in extreme conditions. These alloys do not degrade and lose strength and structure at high temperatures.

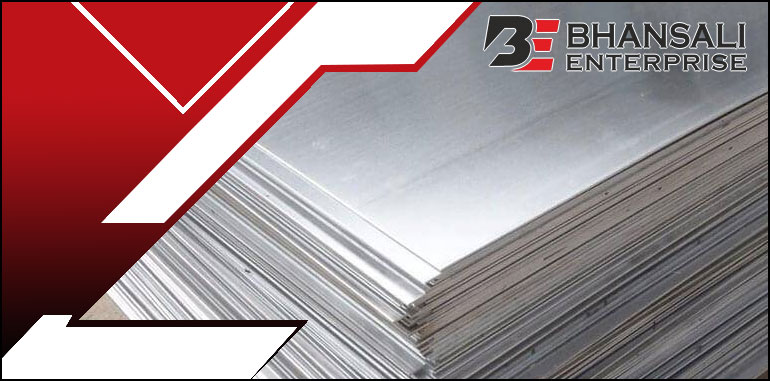

Inconel Sheet Plate in UAE

To us, quality is the most important thing. Quality assurance procedures are integrated into the manufacturing process to ensure that all the Inconel Sheet Plate manufactured meet the set international standards and the required customer specifications. The tests carried out during quality assurance include chemical, mechanical, and dimensional tests. Also, we conduct non-destructive testing to see any possible defects, which makes our products the best before reaching the customers.

Our Inconel Sheet Plates have several applications and are used in various industries. In aerospace, they are used for parts that have to operate at very high temperatures and in extreme conditions, such as the blades of turbines and exhaust systems. They are applied in the chemical processing industry to equipment that comes into contact with corrosive chemicals or high pressure, such as reactors and heat exchangers. The marine industry is one of the largest consumers of Inconel Sheet Plates as they are highly resistant to seawater and used for marine hardware and offshore structures.

Partner with us for your Inconel Sheet Plates supplier in the United Arab Emirates, and then you will choose to work with a company that offers you quality products along with our commitment to quality and success. Due to our emphasis on applying our knowledge and our dedication to providing customer value, we can provide products that provide reliable, high-performance operation in today’s demanding conditions.

Inconel Sheet Plate Specifications in UAE

Standards ASTM B443/ ASME SB443
Dimensions ASTM, ASME, and API
Sheets Plates Width 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Sheets Plates Thickness 4mm-100mm
Sheets Plates Length 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface Finish No.1, 2B, BA, 8K Mirror, Hairline, satin (Met with Plastic Coated) Embossed, brush, No.4, HL, matt, pvc etc.
Value added services Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc.
Hardness Half Hard, Quarter Hard, Soft, Hard, Spring Hard
Form Coils, Foils, Rolls, Strip, Flats, Blank (Circle), Ring (Flange)

Available Variations in Inconel Sheet Plate in UAE

Inconel Sheet

Inconel Sheets

Inconel Plate

Inconel Plates

Inconel Coils

Inconel Coils

Inconel Strips

Inconel Strips

Inconel Foils

Inconel Foils

Inconel Circle

Inconel Circle

Inconel Sheet Plate Equivalent Gardes in UAE

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Inconel 600 2.4816 N06600 NCF 600 NA 13 МНЖМц 28-2,5-1,5 NC15FE11M NiCr15Fe
Inconel 601 2.4851 N06601 NCF 601 NA 49 XH60BT NC23FeA NiCr23Fe
Inconel 625 2.4856 N06625 NCF 625 NA 21 ХН75МБТЮ NC22DNB4M NiCr22Mo9Nb
Inconel 718 2.4668 N07718

Chemical Composition of Inconel Sheet Plate in UAE

Grade C Mn Si S Cu Fe Ni Cr
Inconel 600 0.15 max 1.00 max 0.50 max 0.015max 0.50 max 6.00 – 10.00 72.00 min 14.00 – 17.00
Inconel 601 0.10 max 1.0 max 0.5 max 0.015 max 1.0 max Balance 58.0 – 63.0 21.0 – 25.0
Inconel 625 0.10 max 0.50 max 0.50 max 0.015 max 5.0 max 58.0 min 20.0 – 23.0
Inconel 718 0.08 max 0.35 max 0.35 max 0.015 max 0.30 max 50.00 – 55.00 17.00 – 21.00

Mechanical Properties of Inconel Sheet Plate in UAE

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Inconel 600 8.47 g/cm3 1413 °C (2580 °F) Psi – 95,000 , MPa – 655 Psi – 45,000 , MPa – 310 40 %
Inconel 601 8.1 g/cm3 1411 °C (2571 °F) Psi – 80,000 , MPa – 550 Psi – 30,000 , MPa – 205 30 %
Inconel 625 8.4 g/cm3 1350 °C (2460 °F) Psi – 1,35,000 , MPa – 930 Psi – 75,000 , MPa – 517 42.5 %
Inconel 718 8.2 g/cm3 1350 °C (2460 °F) Psi – 1,35,000 , MPa – 930 Psi – 75,000 , MPa – 482 45 %

Other Types Of Inconel Sheet Plate in UAE

  • Inconel 600 Coils Price
  • Alloy 625 Coils
  • Inconel Alloy 800 Sheets
  • Inconel Alloy 820 Plates
  • Inconel x-750 Plate
  • Inconel 700 Plates
  • Inconel 800 Sheets
  • ASTM B168 Inconel Alloy 825 Sheets
  • Nickel Alloy 718 Shim Sheets
  • UNS N06601 Sheets
  • Inconel 2.4816 Coils
  • Inconel Alloy 925 HR Coils
  • Inconel 600 Plate
  • Nickel Alloy 718 Sheets
  • Inconel 700 Sheet Suppliers
  • Inconel Alloy 600 Perforated Sheet
  • UNS N06600 Coils Supplier
  • Inconel Alloy x-750 Coil
  • Nickel Alloy 620 Sheets
  • 2.4816 Plates
  • N06600 Inconel Hot Rolled Plate
  • Inconel 718 Slit Coils
  • Inconel Alloy 725 Circle
  • Alloy x-750 Strips
  • Inconel 800 Plate Price
  • Inconel 825 Coil
  • Inconel Alloy 600 Shim Coils
  • Inconel 600 Cold Rolled Coils
  • ASME SB168 Inconel Alloy 700 Plate
  • Inconel 725 Sheet
  • Alloy 601 CR Plate
  • Nickel Alloy 600 Plate
  • UNS N06600 Rings
  • Inconel 2.4851 Sheets
  • Inconel Alloy 600 Foils
  • Nickel Alloy 601 Rolls

Inconel Sheet Plate Industrial Application in Saudi Arabia
