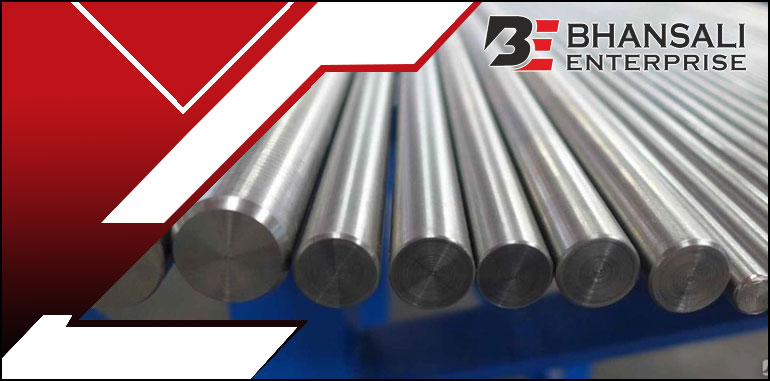

Inconel Round Bar in Iraq
Inconel Round Bar In Iraq, Inconel Round Bar, Inconel Round Bar Suppliers
Bhansali Enterprise is a well-known supplier of Inconel Round Bars in Iraq that is highly efficient and long-lasting in its operation. Our inconel round bars are manufactured in a way that they have high tensile strength, good wear and tear and high-temperature resistance, which makes them ideal for use in various sectors.
Our Inconel Round Bars are manufactured from the finest Inconel alloy, a nickel-chromium-based material with high oxidation and corrosion resistance and high-temperature properties. This high-performance steel ensures that our round bars do not rust or degrade in the toughest environments, such as aerospace, chemical processing and power generation.
The features of our Inconel Round Bars are high tensile strength, fatigue strength, high temperature and corrosive environment. These attributes make our round bars ideal for use in applications associated with pressure and temperature. In addition, our Inconel Round Bars are easy to weld and can be easily machined to fit the intended applications in engineering and manufacturing industries.
Our quality is a key factor defining its production. Quality control is done from the time of production of Inconel Round Bars up to the time they are ready to be sold in the market. Our quality check includes mechanical tests, corrosion tests and dimensional tests so that every round bar we offer is precise in its functionality.
These Inconel Round Bars are used in many sectors, including aerospace industry components, turbine blades, chemical reactors, etc. They are also hard and capable of withstanding several unfavourable situations, making them suitable for projects that need quality materials that can withstand harsh situations.
The vision statement is to create products that would be acceptable to the target market and even surpass their expectations. The Inconel Round Bars are one example of how we are dedicated to quality and innovation, which makes us a supplier of choice for organisations in Iraq and other countries.
Inconel Round Bar Specifications in Iraq
| Specifications : | ASTM B166 / ASME SB166 |
| Dimensions : | ASTM, ASME and API |
| Size : | 10 mm To 100 mm Dia in 100 mm TO 6000 mm Length. |
| Length : | 3 to 6 meter, Custom Cut Lengths |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Form : | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wiremesh, Billet, Ingot, Forging Etc., |
| Condition : | Cold Drawn & Polished Cold Drawn, Centreless Ground & Polished |
Available Variations in Inconel Round Bar in Iraq
Inconel Squar Bar
Inconel Flat Bar
Inconel Hexagon Bar
Inconel Hot Rolled Bar
Inconel Cold Rolled Bar
Inconel Round Bar
Inconel Round Bar Equivalent Gardes in Iraq
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
| Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb |
| Inconel 718 | 2.4668 | N07718 | – | – | – | – | – |
Chemical Composition of Inconel Round Bar in Iraq
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
| Inconel 601 | 0.10 max | 1.0 max | 0.5 max | 0.015 max | 1.0 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 |
| Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | – | 5.0 max | 58.0 min | 20.0 – 23.0 |
| Inconel 718 | 0.08 max | 0.35 max | 0.35 max | 0.015 max | 0.30 max | – | 50.00 – 55.00 | 17.00 – 21.00 |
Mechanical Properties of Inconel Round Bar in Iraq
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
| Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
| Inconel 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
Other Types Of Inconel Round Bar in Iraq
- 2.4816 Round Bar
- Inconel 600 Polished Bar
- Inconel Alloy 601 Threaded Bar
- Inconel 718 Square Bar
- 600 Inconel Alloy Round Bar
- Inconel x-750 Round Bar
- Inconel Alloy 1.4307 Square Bar
- ASME SB166 600 Inconel Bar
- Inconel 925 Hollow Bar
- ASTM B166 Alloy 601 Bar
- Inconel Alloy 2.4851 Round Bars
- UNS N06600 Round Bar
- WNR 2.4851 Industrial Bars
- Inconel 800 Hexagonal Bar
- 825 Inconel 12mm Bar
- 601 Alloy Round Bars
- Inconel x-750 Hex Bar
- ASTM B166 Alloy 718 Round Bar
- Inconel Alloy 800 Round Bar
- 601 Alloy T-Rod
- Inconel 600 Cold Finish Round Rods
- 2.4851 Round Rod
- UNS N06601 Rectangular Rod
- Inconel Alloy 2.4816 Rods
- Inconel 825 Rod Stock
- ASME SA 276 Alloy 600 Rods
- Inconel 601 Forged Rod
- Inconel Alloy 925 Round Rods
- Inconel 601 Hex Rod
- Inconel 1.4307 Round Rod
- Steel x-750 Round Rod
- 718 Inconel Alloy Precision Ground Rod
- Inconel Alloy 601 Round Rod
- ASME SB166 Alloy 600 Round Rod
- Inconel 625 Flat Rod
- ASME SB166 Alloy 600 Half-Round Rods
- UNS N06601 Round Rod
- Astm B166 Alloy 601 Inconel Rods
Inconel Round Bar Industrial Application in Iraq
- Oil & Gas Industry
- Power Plant Generation
- Marine Industry
- Petrochemical Industry
- Chemical Industry
- Aerospace Industry
- Sugar Industry
- Pharmaceutical Equipment
- Pulp and Paper Industry
- Gas Processing
- Specialty Chemicals
- Off-Shore Oil Drilling Companies
