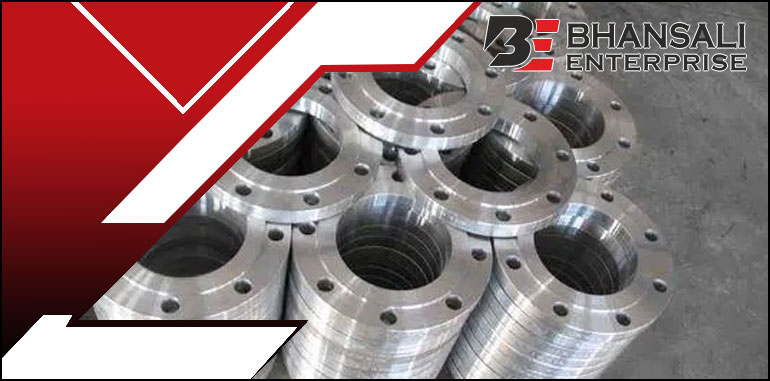

Titanium Flanges in Iraq
Titanium Flanges In Iraq, Titanium Flanges, Titanium Flanges Supplier
Bhansali Enterprise is one of the leading companies that deals in Titanium Flanges in Iraq and has been supplying quality products in a high working environment. The titanium flanges that we have available are of various sizes and highly corrosion resistant; thus, they can be used in different industries.
Our titanium flanges are made of titanium alloy with excellent features for resisting corrosion in marine and chemical applications. It has features such as a high strength-to-weight ratio and oxidation resistance; therefore, our flanges will be able to withstand high temperatures and pressures.
The features of our titanium flanges are that they are very resistant to corrosion and possess very high tensile strength; they are relatively very light in weight. These attributes are useful in areas where the chemical environment is hard, where aggressive chemicals accompany high temperatures and high pressures. Furthermore, our Titanium Flanges are produced to have good weldability and machineability in engineering and manufacturing industries.
Quality control is maintained right from the production of Titanium Flanges. Every flange is thoroughly examined to ensure that it is of the best quality in the market. Mechanical property tests, corrosion tests, and dimensional tests are also carried out to ensure that each product is efficient and operates optimally.
Our Titanium Flanges are used in aerospace, marine, chemical processing and petrochemical industries. They have a long service life and are very resistant to harsh conditions; therefore, they are suitable for use in delicate projects that need the best performance and durability.
Our objective is to meet the customer’s needs by offering quality goods. Titanium Flanges are one of our best products and services, and this makes us the most wanted company by businesses in Iraq and other parts of the world.
Titanium Flanges Specifications in Iraq
| Standard | ASTM A182 / ASME SA182, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges |
| Dimension | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Flanges Size | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Pressure Class | PN 2.5 TO PN 400 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| Table | D, E, F, H |
| Types | Forged / Threaded / Screwed / Plate |
| Form | Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange, Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange. |
| Flanges Marking | All Flanges are marked as follows: Grade, Standard, Thickness, Heat No. (Or according to the customer’s request.) |
Available Variations in Titanium Flanges in Iraq
Titanium Slip On Flange in Iraq
Titanium Alloy Weld Neck Flange in Iraq
Titanium Blind Flange in Iraq
Ti Alloy Threaded Flanges in Iraq
Titanium Lap Joint Flanges in Iraq
Titanium Spectacle Blind Flanges in Iraq
Titanium Flanges Equivalent Gardes in Iraq
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 2 | 3.7035 | R50400 |
| Titanium Gr 5 | 3.7165 | N56400 |
Chemical Composition of Titanium Flanges in Iraq
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
Mechanical Properties of Titanium Alloy Flanges in Iraq
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
Other Types Of Titanium Flanges in Iraq
- Titanium Grade 2 SORF Flange
- Grade 2 Titanium Threaded Flange
- 3.7035 Tongue & Groove Flange
- Grade 2 Titanium Orifice Flange
- Titanium 3.7035 Spectacle Blind Flange
- Titanium Grade 2 WNFF Flange
- Titanium 3.7035 Pipe Flanges
- Titanium Alloy Gr 2 Spades Ring Flanges
- ASME SB381 Titanium Gr 2 Flange
- ASTM B381 Titanium Grade 2 Reducing Flange
- Titanium Alloy Gr 2 Expander Flange
- ASTM B381 Ti Alloy Gr 2 BLRF Flange
- Titanium Alloy Gr 2 WNRTJ Flange
- Titanium Grade 2 Lapped Joint Flange
- Titanium Gr 2 Lap Joint Flange
- Grade 2 Titanium Welding Neck Flange
- Grade 2 Titanium Flanges
- WNR 3.7035 Industrial Flanges
- Titanium Grade 2 Long Weld Neck Flanges
- UNS R50400 Square Flange
- Titanium Grade 2 Long Weld Neck Flange
- Titanium Grade 2 Nipo Flanges
- Titanium Grade 2 Flanges Suppliers
- 3.7035 Loose Flanges
- Titanium Gr2 Flanges
- ASME B16.5 Titanium Alloy Gr 2 Flanges
- ASME SB381 Titanium Gr 2 BLRF Flanges
- Titanium Grade 2 Flange Manufacturer in India
- ASME SB381 Ti Alloy Gr 2 Puddle Flanges
- UNS R50400 High Hub Blinds Flanges
- Titanium 3.7035 PN 10 Flange
- Titanium Grade 2 Raised Face Flange
- UNS R50400 Spades Ring Spacers Flanges
- Ti Alloy Gr 2 Male & Female Flanges
- Gr 2 Titanium Alloy Flat Face Flange Stock
- Titanium Gr 2 RTJF Flanges
- Titanium Gr 2 Nipoflange
- ASME SB 381 Titanium Gr 2 Screwed Flanges
- Grade 2 Titanium Flat Face Flange
- Titanium R50400 SOFF Flanges
- Grade 2 Titanium Socket Welding Flange
- Titanium Grade 2 Plate Flange
Titanium Alloy Flanges Industrial Application in Iraq
- Oil & Gas Industry
- Power Plant Generation
- Marine Industry
- Petrochemical Industry
- Chemical Industry
- Aerospace Industry
- Sugar Industry
- Pharmaceutical Equipment
- Pulp and Paper Industry
- Gas Processing
- Specialty Chemicals
- Off-Shore Oil Drilling Companies
