Duplex Round Bars in Saudi Arabia

Country » Duplex Round Bars in Saudi Arabia

Duplex Round Bars In Saudi Arabia, Duplex Round Bar, Duplex Round Bar Suppliers

Duplex Round Bars are also produced and offered by Bhansali Enterprise to Saudi Arabia which has a good reputation for providing quality products to meet the needs of the various industries. Duplex Round Bars, which we supply, have been designed to give better strength, and corrosion resistance and perform well in adverse environments which are needed in oil and gas, chemical processing and marine sectors.

The mechanical characteristics of our Duplex Round Bars are fairly good, and the material has better resistance to stress corrosion cracking, pitting, and crevice corrosion. This is because the chromium-molybdenum-nitrogen composition is well-tuned to increase the strength and durability of the bars to a very large extent. That is why our Duplex Round Bars are appropriate for application in conditions beyond standard stainless steel’s capabilities.

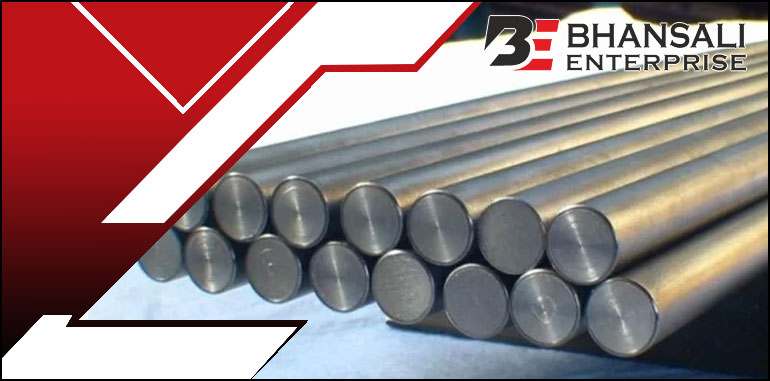

Duplex Steel Round Bar

It is worth stating that quality is always a priority when it comes to the production of our products. Quality control is maintained in our Duplex Round Bars so that they can be of good quality and standard as per the international quality control and the customer’s specification. The chemical analysis, mechanical and physical tests and dimensional controls are performed on the products. We also carry out non-destructive tests to establish any other defects that may be contained in the products before they are sold to the customers.

Our Duplex Round Bars have many and varied applications. They are used in the oil and gas industry to construct drilling platforms, subsea structures and pipelines because of their superior resistance to seawater and other corrosive substances. They are used in the chemical processing industry in heat exchangers, pressure vessels, and storage tanks. Because of their excellent performance in marine environments can be used to construct ships and other offshore structures.

Working with us as your Duplex Round Bars supplier in Saudi Arabia means you get to deal with the finest products backed by our unwavering commitment. This is because we have focused our operations in our area of speciality and have devoted our energies to designing and coming up with products that will meet the current demands of our clients and, at the same time, meet the intended purpose in the harshest conditions.

Duplex Round Bar Specifications in Saudi Arabia

Specifications ASTM A276, ASTM A479, AMS 5513, AMS 5511, AMS 5647
Dimension Standard EN, DIN, JIS, ASTM, BS, ASME, AISI
Bar Diameter 3 ~ 800mm
Hex Bar size 2-100mm A/F
Flat bar size Thickness: 2 -100mm.
Width: 10 to 500mm.
Square bar size 4 to 100mm
Rectangular Bars Size: 33 x 30mm to 295 x 1066mm.
Thickness: 3.0 to 12.0mm.
Hollow Bars 32mm OD x 16mm ID to 250mm OD x 200mm ID)
Billet Size 1/2 to 495mm Diameter
Finish Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black
Tolerance H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients requirements
Bar Surface Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline
Rolled Bars Condition Hardened & tempered, annealed
Cold Rolled Bar Technique Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod
Form Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc.

Available Variations in Duplex Round Bar in Saudi Arabia

Square Bar

Duplex Steel Square Bar in Saudi Arabia

Rectangular Bar

Duplex Steel Flat Bar in Saudi Arabia

Hex Bar

Duplex Steel Hex Bar in Saudi Arabia

Rectangular Bar

Duplex Steel Rectangular Bar in Saudi Arabia

Forged Bar

Duplex Steel Forged Bar in Saudi Arabia

Bright Bar

Duplex Steel Bright Bar in Saudi Arabia

Duplex Round Bar Equivalent Gardes in Saudi Arabia

STANDARD WERKSTOFF NR. UNS
Duplex Steel 1.4462 S32205
Duplex Steel 1.4462 S31803

Chemical Composition of Duplex Round Bar in Saudi Arabia

Grade C Mn Si P S Cr Mo Ni N Fe
S32205 0.030 max 2.00 max 1.00 max 0.030 max 0.020 max 22.0 – 23.0 3.0 – 3.5 4.50 – 6.50 0.14 – 0.20 63.72 min
S31803 0.030 max 2.00 max 1.00 max 0.030 max 0.020 max 22.0 – 23.0 3.0 – 3.5 4.50 – 6.50 0.14 – 0.20 63.72 min

Mechanical Properties of Duplex Steel Round Bar in Saudi Arabia

Grades Density (g/cm 3) Density (lb/in 3) Melting Point (°C) Melting Point (°F)
S32205 7.805 0.285 1420 – 1465 2588 – 2669
S31803 7.805 0.285 1420 – 1465 2588 – 2669

Other Types Of Duplex Steel Round Bar in Saudi Arabia

  • Duplex Steel S32205 Polished Bar
  • DSS UNS S32205 Round Bar
  • Dupplex Steel F60 12mm Bar
  • ASTM A182 DSS S32205 Bar
  • DSS ASTM A182 S32205 Threaded Bar
  • Duplex Stainless Steel F60 Hex Bar
  • Duplex Stainless Steel F60 Round Bar
  • Duplex Stainless Steel F60 Hollow Bar
  • Duplex Steel UNS S32205 Round Bar
  • WNR 1.4462 Industrial Bars
  • DSS F60 S32205 Square Bar
  • S32205 Duplex Stainless Steel Round Bar
  • Duplex Stainless Steel 1.4462 Round Bars
  • Duplex Steel A182 F60 Hexagonal Bar
  • Duplex Stainless Steel 1.4462 Square Bar
  • ASTM A182 DSS S32205 Round Bar
  • F60 Round Bars
  • ASTM SA182 F60 Duplex Steel Bar
  • Duplex Stainless Steel F60 Forged Rod
  • Duplex Steel F60 Hex Rod
  • Duplex Steel F60 Rod Stock
  • Duplex Steel S32205 F60 Round Rods
  • Duplex Steel UNS S32205 Round Rod
  • UNS S32205 Duplex Steel Rectangular Rod
  • DSS S32205 Cold Finish Round Rods
  • ASTM A182 S32205 Duplex Stainless Steel Rods
  • Duplex Steel S32205 Rods
  • ASME SA182 DSS F60 Round Rod
  • UNS S32205 Duplex T-Rod
  • ASME SA182 Duplex Steel S32205 Half-Round Rods
  • Duplex Steel F60 UNS S32205 Round Rod
  • Duplex Stainless Steel 1.4462 Round Rod
  • Duplex Stainless Steel S32205 Flat Rod
  • ASTM A182 Duplex Steel S32205 Rods
  • UNS S32205 DSS Round Rod
  • UNS S32205 Duplex Steel Precision Ground Rod

Duplex Steel Round Bar Industrial Application in Saudi Arabia
