Hastelloy Sheet Plate in Saudi Arabia

Country » Hastelloy Sheet Plates in Saudi Arabia

Hastelloy Sheet Plate In Saudi Arabia, Hastelloy Sheet, Hastelloy Plate, Hastelloy Plate Suppliers, Hastelloy Sheet Suppliers

Hastelloy Sheet Plates are one of the major products of Bhansali Enterprise, which has carved a niche for itself in manufacturing and supplying high-quality Hastelloy Sheet Plates that meet the exacting demands of different industries. Our Hastelloy Sheet Plates are designed to provide high strength and durability, excellent corrosion resistance, and the ability to be used in chemical processing, aerospace, marine, and power generation industries.

Hastelloy Sheet Plates are made from Hastelloy alloys, which are a category of nickel based superalloys that have excellent tolerance to oxidation, corrosion and high temperature conditions. These alloys contain nickel, molybdenum, and chromium, making them very stable and able to withstand unforgiving conditions. Hastelloy Sheet Plates are especially used for features such as resistance towards aggressive chemicals like acids and industrial chemicals and high temperatures.

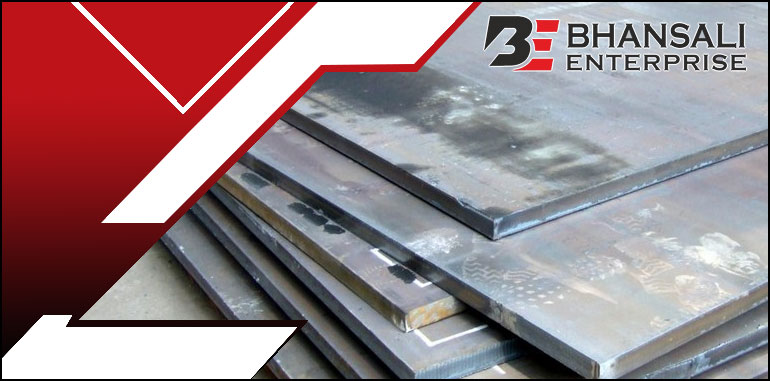

Hastelloy Plates

Quality is maintained from manufacturing Hastelloy Sheet Plate until it is delivered to the customer to meet international quality standards. The measures we take to ensure quality control include chemical analysis tests, mechanical tests, and dimensional tests. We also carry out non-destructive testing to ascertain any defects in the products we manufacture so that we can provide our clients with the best quality products.

Our Hastelloy Sheet Plates are widely used and very important in many industries. They are applied in the chemical processing industry in structures like reactors, tanks, and heat exchangers where the material is required to withstand attack from aggressive chemicals and high temperatures. In the aerospace industry, Hastelloy Sheet Plates are used in those parts of the system which are exposed to severe operating conditions such as engine and exhaust. They have excellent resistance to seawater and, therefore, find application in ships, offshore structures and marine equipment. Furthermore, in the power generation industry, they are used in high temperatures such as in gas turbines and cooling.

The skills and passion for our work allow us to offer solutions that address our clients’ needs and offer the highest performance in the most challenging conditions.

Hastelloy Plates Specifications in Saudi Arabia

Standards ASTM B575 / ASME SB575
Dimensions ASTM, ASME, and API
Plate Width Range 30″ to 240″
Sheets Plates Thickness 7 gauge to 28 gauge or 3.664mm to .321mm
Plate Length Range Up to144″ Non-Standard or Longer Lengths Available Upon Request
Value added services Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc.
Hardness Half Hard, Quarter Hard, Soft, Hard, Spring Hard
Form Coils, Foils, Rolls, Strip, Flats, Blank (Circle), Ring (Flange)

Available Variations in Hastelloy Sheet Plates in Saudi Arabia

Super Duplex Sheet

Hastelloy Sheets in Saudi Arabia

Super Duplex Plates

Hastalloy Plates in Saudi Arabia

Super Duplex Coil

Hastelloy Alloy Coil in Saudi Arabia

Super Duplex Strips

Hastelloy Strip in Saudi Arabia

Super Duplex Foil

Hastelloy Foil in Saudi Arabia

Super Duplex Circle

Hastelloy Circle in Saudi Arabia

Hastelloy Plates Equivalent Gardes in Saudi Arabia

STANDARD WERKSTOFF NR. UNS JIS EN
Hastelloy C22 2.4602 N06022 NW 6022 NiCr21Mo14W
Hastelloy C276 2.4819 N10276 NW 0276 NiMo16Cr15W

Chemical Composition of Hastelloy Sheet Plates in Saudi Arabia

Grade C Mn Si S Co Ni Cr Fe Mo P
Hastelloy C22 0.10 max 0.50 max 0.08 max 0.02 max 2.50 max 50.015 min* 20.00 – 22.50 2.00 – 6.00 12.50 – 14.50 0.02 max
Hastelloy C276 0.10 max 0.50 max 0.50 max 0.15max 5.0 max 58.0 min 20.0 – 23.0

Mechanical Properties of Hastelloy Sheet Plates in Saudi Arabia

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Hastelloy C22 8.69 g/cm3 1399 °C (2550 °F) Psi – 1,00,000 , MPa – 690 Psi – 45000 , MPa – 310 45 %
Hastelloy C276 8.4 g/cm3 1350 °C (2460 °F) Psi – 1,35,000 , MPa – 930 Psi – 75,000 , MPa – 517 42.5 %

Other Types Of Hastelloy Sheet Plates in Saudi Arabia

  • Hastelloy Alloy C22 Sheets
  • Alloy C22 Coils
  • Hastelloy Alloy C22 HR Coils
  • UNS N06022 Coils Supplier
  • Hastelloy Alloy C22 Perforated Sheet
  • Hastelloy Alloy C22 Coil
  • Hastelloy C22 Plates
  • Hastelloy C22 Coils Price
  • Hastelloy C22 Sheets
  • Nickel Alloy C22 Sheets
  • Hastelloy C22 Plate
  • Hastelloy Alloy C22 Plates
  • Alloy C22 Sheets
  • Nickel Alloy C22 Shim Sheets
  • Hastelloy 2.4602 Coils
  • ASTM B575 Hastelloy Alloy C22 Sheets
  • UNS N06022 Sheets
  • Hastelloy C22 Sheet Price
  • UNS N06022 Rings
  • Hastelloy C22 Plate Price
  • Hastelloy C22 Cold Rolled Coils
  • Hastelloy 2.4602 Sheets
  • ASME SB575 Hastelloy Alloy C22 Plate
  • Nickel Alloy C22 Rolls
  • N06022 Hastelloy Hot Rolled Plate
  • 2.4602 Plates
  • Nickel Alloy C22 Sheets
  • Alloy C22 Strips
  • Hastelloy C22 Slit Coils
  • Nickel Alloy C22 Plate
  • Hastelloy C22 Sheet
  • Alloy C22 CR Plate
  • Hastelloy Alloy C22 Shim Coils
  • Hastelloy Alloy C22 Foils
  • Hastelloy Alloy C22 Circle
  • Hastelloy C22 Coil

Hastelloy Sheet Plates Industrial Application in Saudi Arabia
