Monel 400/500 Sheet Plate in Saudi Arabia

Country » Monel 400/500 Sheet Plate in Saudi Arabia

Monel 400/500 Sheet Plate In Saudi Arabia, Monel 400 Sheet, Monel 400 Sheet Supplier, Monel Plate

Monel 400/500 Sheet Plates supplied and manufactured by Bhansali Enterprise is one of the best available in Saudi Arabia due to their quality and ability to meet the high expectations of different industries. Our Monel 400/ Monel 500 Sheet Plates are designed to provide high strength, superior corrosion resistance, and durability in various applications like marine, chemical processing, aerospace and others.

Monel 400 Sheet Plates are made from a nickel-copper alloy that has excellent resistance to seawater and many kinds of acids. These plates are distinguished by high tensile strength and toughness, which are considered mechanical properties. Monel 400 has a higher resistance to chloride induced stress corrosion cracking and also has good strength and hardness at high temperatures.

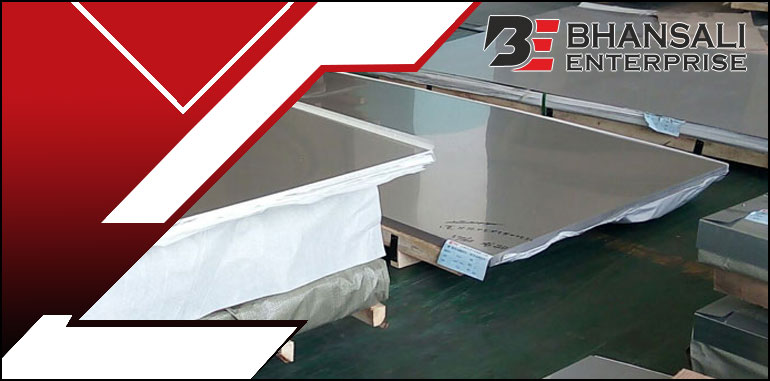

Monel Sheet Plate in Saudi

Monel 500 Sheet Plates are produced from nickel-copper alloy with increased copper content than Monel 400. This alloy has enhanced strength and hardness compared to conventional alloys while at the same time having enhanced resistance to corrosion and oxidation. Monel 500 is suitable for use in areas where the metal is subjected to high pressure and high temperatures and in other conditions that are considered to be severe.

Quality is one of the most important aspects of our manufacturing process at Bhansali Enterprise. Quality control is a top priority at our company to guarantee that all the Monel 400 and Monel 500 Sheet Plate products we supply conform to global quality standards and meet the client’s requirements. Some of the tests we carry out include chemical, mechanical, and dimensional tests.

The uses of our Monel 400 and Monel 500 Sheet Plates are diverse and widespread. They are used in the marine industry for parts that are in contact with seawater like the hulls of ships and the propeller shafts. In the chemical processing industry, they are used in equipment dealing with aggressive chemicals such as reactors and heat exchangers. They also possess high strength and are resistant to corrosion and thus can be used in aerospace industries for the production of turbine and structural parts.

Monel 400/K500 Sheet Plates Specifications in Saudi Arabia

Specifications:  ASTM B127 / ASME SB127
Dimensions : ASTM, ASME, and API
Size : 15NB to 150NB In
Thickness : From 2 to 40 mm
Production : Hot-Rolled (HR) / Cold-Rolled (CR)
Grade : Monel 400 / K500 UNS (N04400, N05500), DIN (2.4360, 2.4375)
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.

Available Variations in Monel 400/K500 Sheet Plates in Saudi Arabia

Super Duplex Sheet

Monel 400/K500 Sheet in Saudi Arabia

Super Duplex Plates

Monel 400/K500 Plates in Saudi Arabia

Super Duplex Coil

Monel 400/K500 Coil in Saudi Arabia

Super Duplex Strips

Monel 400/K500 Strip in Saudi Arabia

Super Duplex Foil

Monel 400/K500 Foil in Saudi Arabia

Super Duplex Circle

Monel 400/K500 Circle in Saudi Arabia

Monel 400/K500 Sheet Plates Equivalent Gardes in Saudi Arabia

STANDARD UNS WNR. JIS BS GOST AFNOR EN
Monel 400 N04400 2.4360 NW 4400 NA 13 МНЖМц 28-2,5-1,5 NU-30M NiCu30Fe
Monel K500 N05500 2.4375

Chemical Composition of Monel 400/K500 Sheet Plates in Saudi Arabia

Grade C Mn Si S Cu Fe Ni
Monel 400 0.30 max 2.00 max 0.50 max 0.024 max 28.00 – 34.00 2.50 max 63.00 min
Monel K500 0.25 max 1.5 max 0.5 max 0.010 max 27.00 – 33.00 0.5 – 2 63.00 min

Mechanical Properties of Monel 400/K500 Sheet Plates in Saudi Arabia

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Monel 400 8.8 g/cm3 1350 °C (2460 °F) Psi – 80,000 , MPa – 550 Psi – 35,000 , MPa – 240 40 %
Monel K500 8.44 g/cm3 1350 °C (2460 °F) Psi – 160000 , MPa – 1100 Psi – 115000 , MPa – 790 20 %

Other Types Of Monel 400/K500 Sheet Plates in Saudi Arabia

  • Alloy 400 Coils
  • Alloy 400 HR Coils
  • Nickel Alloy 400 Sheets
  • Monel 400 Sheets
  • Monel 2.4602 Coils
  • UNS N10400 Coils Supplier
  • Alloy 400 Coil
  • Nickel Alloy 400 Shim Sheets
  • Monel 400 Plate
  • Monel Alloy 400 Perforated Sheet
  • UNS N04400 Sheets
  • Monel Alloy 400 Plates
  • ASTM B127 Monel Alloy 400 Sheets
  • Monel 400 Coils Price
  • Monel Alloy 400 Sheets
  • Alloy 400 Sheets
  • Monel 400 Plates
  • Monel 400 Sheet Price
  • Nickel Alloy K500 Sheets
  • 2.4375 Plates
  • N05500 Monel Hot Rolled Plate
  • Monel K500 Slit Coils
  • Monel Alloy K500 Circle
  • Alloy K500 Strips
  • Monel K500 Plate Price
  • Monel K500 Coil
  • Monel Alloy K500 Shim Coils
  • Monel K500 Cold Rolled Coils
  • ASME SB127 Monel Alloy K500 Plate
  • Monel K500 Sheet
  • Alloy K500 CR Plate
  • Nickel Alloy K500 Plate
  • UNS N05500 Rings
  • Monel 2.4375 Sheets
  • Monel Alloy K500 Foils
  • Nickel Alloy K500 Rolls

Monel 400/K500 Steel Sheet Plates Industrial Application in Saudi Arabia
