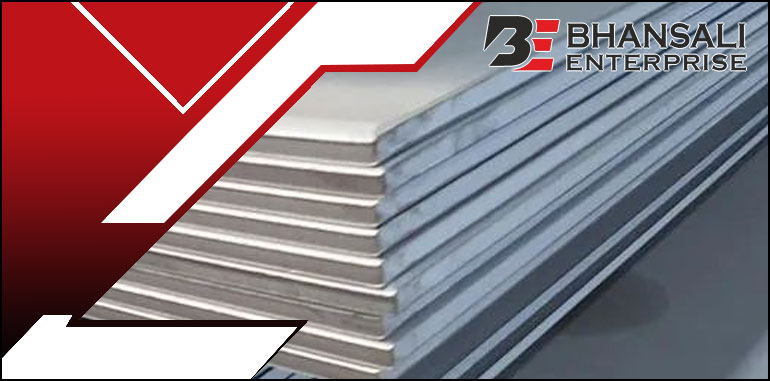

Super Duplex Sheet Plates in Saudi Arabia
Super Duplex Sheet Plates In Saudi Arabia, Super Duplex Sheet Plates, Super Duplex Plate Suppliers In Saudi Arabia
We at Bhansali Enterprise are one of the leading manufacturers and suppliers of super duplex sheet plates in Saudi Arabia, offering quality and reliable products to meet the client’s needs. Super Duplex Sheet Plates are produced to offer high tensile strength, high corrosion resistance and high performance in some corrosive environments. Thus, they find their application in oil, gas, chemical processing, and marine industries.
The mechanical properties of our Super Duplex Sheet Plates are quite appreciable, and they have better resistance to SCC, Pitting and Crevice Corrosion. These key features are achieved by the balanced content of chromium, molybdenum and nitrogen, which significantly improves their strength and hardness. Super Duplex Sheet Plates are better performers than normal stainless steel and, therefore, can be used where normal stainless steel cannot withstand the conditions.
Quality is considered in all the activities that are associated with the production of the products that we deal in. The Super Duplex Sheet Plates are checked for quality and are made sure to be standard and as per the client’s requirements. Chemical, mechanical, and dimensional tests are performed to achieve the best quality. Also, we use non-destructive testing to check for any defects present, making our products of the highest quality before they are supplied to the clients.
The application of our Super Duplex Sheet Plates is extensive. They are used in the construction of drilling rigs, subsea equipment, and pipelines in the oil and gas industry due to their excellent resistance to seawater and other corrosive substances. In the chemical processing industry, they are used in heat exchangers, pressure vessels and storage tanks. These metals are used in ship and offshore structures because of their good performance in marine conditions.
When you partner with us to supply you with Super Duplex Sheet Plates in Saudi Arabia, you get the best products with a commitment to quality and service. Knowledge orientation and development interest make it possible to provide the client with products that satisfy the latter’s needs and perform best in all the applications.
Super Duplex Sheet Plates Specifications in Saudi Arabia
| Standards | ASTM A240 / ASME SA240 |
| Dimensions | ASTM, ASME, and API |
| Sheets Plates Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets Plates Thickness | 4mm-100mm |
| Sheets Plates Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Surface Finish | No.1, 2B, BA, 8K Mirror, Hairline, satin (Met with Plastic Coated) Embossed, brush, No.4, HL, matt, pvc etc. |
| Value added services | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Hardness | Half Hard, Quarter Hard, Soft, Hard, Spring Hard |
| Form | Coils, Foils, Rolls, Strip, Flats, Blank (Circle), Ring (Flange) |
Available Variations in Super Duplex Sheet Plates in Saudi Arabia
Super Duplex Steel Sheet in Saudi Arabia
Super Duplex Steel Plates in Saudi Arabia
Super Duplex Steel Coils in Saudi Arabia
Super Duplex Steel Strip in Saudi Arabia
Super Duplex Steel Foil in Saudi Arabia
Super Duplex Steel Circle in Saudi Arabia
Super Duplex Sheet Plates Equivalent Gardes in Saudi Arabia
| STANDARD | WERKSTOFF NR. | UNS |
| Super Duplex Steel S32750 | 1.4410 | S32750 |
| ZERON 100 | 1.4410 | S32760 |
Chemical Composition of Super Duplex Sheet Plates in Saudi Arabia
| UNS No | Grade | C | Si | Mn | P | S | Cr | Mo | Ni | N | Other |
| S32750 | 2507 | 0.030 | 0.80 | 1.20 | 0.035 | 0.020 | 24.0/26.0 | 3.0/5.0 | 6.00/8.00 | 0.24/0.32 | Cu:0.50 |
| S32760 | ZERON 100 | 0.030 | 0.80 | 1.20 | 0.035 | 0.020 | 24.0/26.0 | 3.0/5.0 | 6.00/8.00 | 0.24/0.32 | Cu:0.50 |
Mechanical Properties of Super Duplex Steel Sheet Plates in Saudi Arabia
| UNS No | Grade | Proof Stress 0.2% (MPa) |
Tensile Strength (MPa) |
Elongation A5(%) |
Hardness Max | |
| HB | HRB | |||||
| S32750 | 2507 | 550 | 795 | 15 | 310 | 32* |
| S32760 | ZERON 100 | 550 | 795 | 15 | 310 | 32* |
Other Types Of Super Duplex Steel Sheet Plates in Saudi Arabia
- Super Duplex S32750 Chequered Plate
- SAF 2507 Shim Sheets
- SDSS S32750 Plate Manufacturer
- SDSS S32750 Coils
- Super Duplex S32750 Perforated Sheet
- Super Duplex S32750 Plates
- 2507 Super Duplex Stainless Steel Sheet
- Super Duplex S32750 Sheets
- Super Duplex Steel 1.4410 Sheet
- UNS S32750 Sheets
- SAF 2507 Sheets
- Austenitic Super Duplex Steel S32750 Plate
- SDSS S32750 Sheets
- UNS S32750 F53 Sheets
- SDSS S32750 CR Plate
- ASTM A240 Super Duplex S32750 Sheets
- No.8 Mirror Finish Super Duplex S32750 Plates
- Super Duplex Steel S32750 Plate
- Super Duplex S32750 2B Finish Plate
- Super Duplex Steel 1.4410 Sheets
- Super Duplex S32750 Circle
- Super Duplex S32750 Foils
- S32750 Super Duplex Steel Hot Rolled Plate
- Super Duplex Steel S32750 Polish Sheets
- SDSS S32750 Shims
- Super Duplex S32750 No 4 Mirror Finish Sheets
- Super Duplex Steel S32750 2D Finish Plates
- Super Duplex Stainless Steel S32750 Plates
- Super Duplex Steel S32750 Slit Coils
- UNS S32750 F53 2B Finish Plate
- Super Duplex Steel 2507 Sheets
- 1.4410 Plates
- SAF 2507 Plate
- SDSS S32750 Strips
- ASME SA240 Super Duplex S32750 Plate
- Super Duplex Steel S32750 Embossed Sheet
Super Duplex Steel Sheet Plates Industrial Application in Saudi Arabia
- Oil & Gas Industry
- Power Plant Generation
- Marine Industry
- Petrochemical Industry
- Chemical Industry
- Aerospace Industry
- Sugar Industry
- Pharmaceutical Equipment
- Pulp and Paper Industry
- Gas Processing
- Specialty Chemicals
- Off-Shore Oil Drilling Companies
