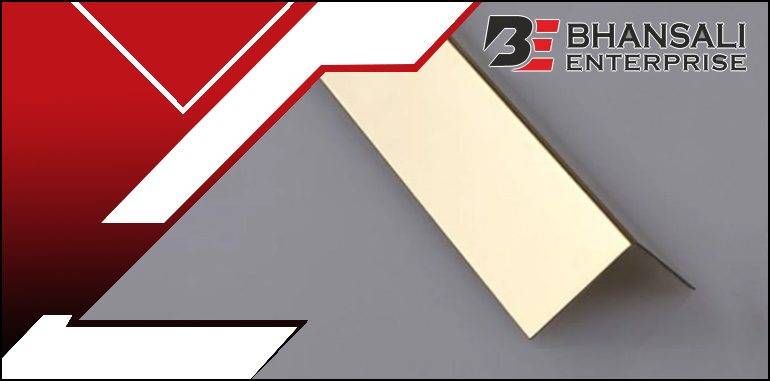

Brass IS 319 Free Cutting Angles & Flat represent a specialized type of brass alloy known for its enhanced machinability and ease of fabrication. Comprising a distinct chemical composition, this brass variant is tailored for applications where precise machining and excellent formability are essential.

The chemical composition of Brass IS 319 Free Cutting includes approximately 60-63% copper and 1.5-3.5% lead. The addition of lead is the key differentiator in this alloy, promoting improved machinability by breaking up chips during machining processes. This attribute reduces tool wear and increases cutting speeds, making it a preferred choice for components that require intricate shapes and precise detailing.

The standout feature of Brass IS 319 Free Cutting Angles & Flat is its exceptional machinability, which allows for efficient and accurate machining operations. Its reduced friction during cutting, resulting from the lead content, facilitates smoother chip evacuation and enhances tool life. This brass variant is commonly used in applications where complex geometries, such as threading and intricate designs, are needed.

In terms of corrosion resistance, Brass IS 319 Free Cutting offers good resistance to atmospheric corrosion and a range of non-aggressive environments. However, its lead content may reduce its resistance to some chemical and corrosive media, necessitating careful consideration of the intended application.

 Alloy Steel F11 Angles & Flats

Heat treatment is generally not required for Brass IS 319 Free Cutting, as its machinability is primarily derived from its lead content. However, annealing may be performed to relieve stresses induced during machining processes.

Applications for Brass IS 319 Free Cutting Angles & Flat include a wide range of industries. It is commonly used in precision components, fasteners, and fittings where efficient machining is crucial. Its formability and ease of fabrication also make it suitable for decorative applications, such as architectural elements and ornamental designs.

Bhansali Enterprises Specifications Of Brass IS 319 Free Cutting Angles and Flats

Standard ASTM B16 / ASTM B16
Dimension ASTM, ASME, AMS, GB/T, JIS
Angle Sizes 5mm to 9mm
Flat Sizes 2mm ~ 100mm etc.
Thickness 3.0mm – 120mm
Length 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Manufacturing Process Hot rolled (HR), Cold rolled (CR), Galvanized etc

LogoASME SB16 Brass IS 319 Free Cutting Angle & Flat Equivalent Grades

cta one shape 1
STANDARD UNS WERKSTOFF NR.
Brass IS 319 Free Cutting C36000 -

LogoChemical Composition of Brass IS 319 Free Cutting Angles and Flats

Shape
Chemical RequirementsGrade
Cu56 to 58 %
Pb2 to 3.50 %
Fe0.3% Max
ZnBalance
Other Impurities excel Fe.0.75% Max

LogoMechanical Properties of Brass IS 319 Free Cutting Angles & Flats

cta one shape 1
ElementValue
Yield Stress150 MPa Min.
Tensile Strength380 MPa Min.
Hardness Brinell90 to 160 HB
Elongation18 Min.

Bhansali Enterprises Available Variations in Brass IS 319 Free Cutting Angles & Flats

Brass IS 319 Free Cutting Equal Angle

Equal Angles

Brass IS 319 Free Cutting Equal Angle

Brass IS 319 Free Cutting Unequal Angles

Unequal Angle

Brass IS 319 Free Cutting Unequal Angle

Brass IS 319 Free Cutting 'L' Shaped Angle

'L' Shaped Angle

Brass IS 319 Free Cutting 'L' Shaped Angle

Brass IS 319 Free Cutting 90 Degree Angle

90 Degree Angle

Brass IS 319 Free Cutting 90 Degree Angle

Brass IS 319 Free Cutting 'T' Shape Angle

'T' Shape Angle

Brass IS 319 Free Cutting 'T' Shape Angle

Brass IS 319 Free Cutting Cold Rolled Flats

Cold Rolled Flats

Brass IS 319 Free Cutting Cold Rolled Flats

Brass IS 319 Free Cutting Hot Rolled Flat

Hot Rolled Flat

Brass IS 319 Free Cutting Hot Rolled Flat

Brass IS 319 Free Cutting Patta

Patta

Brass IS 319 Free Cutting Patta

Brass IS 319 Free Cutting Patti

Patti

Brass IS 319 Free Cutting Patti

Bhansali EnterprisesOther Types Of Brass IS 319 Free Cutting Angle & Flat

  • ASME SB16 Brass IS 319 Free Cutting Angle
  • ASTM B16 Brass IS 319 Free Cutting L Angles
  • UNS C36000 Galvanized Flat
  • Brass IS 319 Free Cutting Galvanized Angle
  • Brass IS 319 Free Cutting Metric Angle
  • ASTM B16 Brass IS 319 Free Cutting Angle
  • Brass IS 319 Grade 2 Equal Leg Angle
  • Brass IS 319 Free Cutting Polished Angles
  • Brass IS 319 Free Cutting Cold Drawn Angle
  • Brass IS 319 Hot Rolled Angle
  • UNS C36000 Brass IS 319 90 Deg Angle
  • UNS C36000 Architectural Angle
  • Brass IS 319 Grade 1 Angles
  • Brass IS 319 Polished Flats
  • Brass IS 319 Unequal Leg Angle
  • ASTM B16 Brass IS 319 Angle
  • Brass IS 319 Free Cutting Industrial Angles
  • Brass IS 319 Free Cutting Flat Patti
  • ASME SB16 Brass Free Cutting Flats
  • Brass IS 319 Free Cutting Machined Cut Flats
  • Brass IS319 Free Cutting Plazma Cut Flat
  • Brass IS 319 Free Cutting Flat Rods
  • Brass IS-319 Free Cutting Forged Patti
  • Brass Free Cutting Industrial Flats
  • UNS C36000 Hot Rolled Patti
  • Brass Free Cutting C36000 Flats Stock
  • Brass IS 319 Free Cutting Cold Rolled Patta
  • ASME SB 16 Brass IS 319 Grade 3 Flats
  • Brass IS 319 Free Cutting Pickled Flats
  • Brass IS 319 Free Cutting Cold Rolled Patta
  • Brass Free Cutting Polished Flat
  • Brass Free Cutting Polished Flats
  • Brass IS 319 Free Cutting Flat
  • ASME SB 16 Brass IS 319 CR Flats

Bhansali EnterprisesBrass IS 319 Free Cutting Angles and Flats Technical Data

Bhansali EnterprisesBrass IS 319 Free Cutting Angles & Flat Industrial Application

Shape
about three shape 4
Shape
Shape
  • Oil & Gas Industry

  • Power Plant Generation

  • Marine Industry

  • Petrochemical Industry

  • Chemical Industry

  • Aerospace Industry

  • Sugar Industry

Bhansali EnterprisesBrass IS 319 Free Cutting Angles & Flats Price Details

Prices for brass IS 319 free cutting angles and flats Products are very affordable. Please click on the request a quote button or Click Here to request the updated price list and ready stock information along with your requirement. Bhansali Enterprise brass IS 319 free cutting maintains a stock of all standard items and can export them at the best price ASME SB16 brass IS 319 T' shape angle, 90 degree angle, equal angle, unequal angle, hot rolled flat, patta, patti etc.
