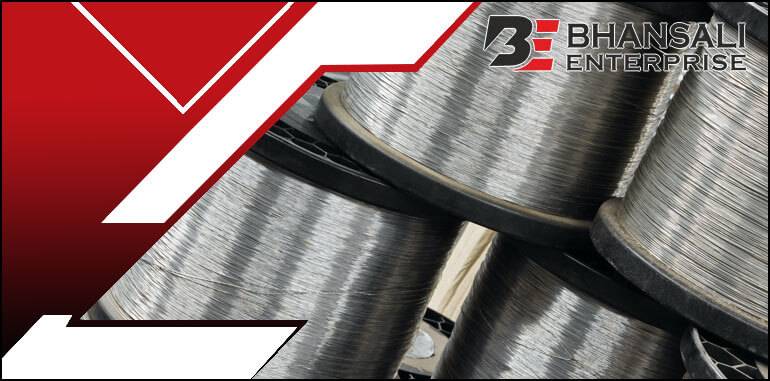

Nickel 200 Wire
200 Nickel Wire, 201 Nickel Wire, Nickel Alloy 201 MIG Wire, Nickel Alloy N02201 Wire, Nickel 200 Wire Manufacturer, Nickel Alloy 200 Wire, Nickel 200 Wire Exporter, Nickel 200 Wire Supplier in India.
Bhansali Enterprise is a prominent supplier and manufacturer of Nickel 200 and Nickel 201 wire worldwide to different industries. We have always kept a strong Nickel 200 wire inventory to meet quantity and price-sensitive applications, both common and speciality. Our Nickel 200 and Nickel 201 wires are certified internationally and offer lasting, strong, high-performing wires for even the most challenging uses.
Nickel 200 and 201 wires are made from high purity nickel and offer high resistance to many corrosive atmospheres, oxidation and chemicals. These wires are characterised by low gas content and magnetism and are widely used in aerospace, chemical processing, electronics, and marine industries. Our Nickel 200 wire has electronics and electrical applications while Nickel 201 wire is used in places with very low carbon content. Both types of nickel wire are used in manufacturing anodes, lead wires, and battery parts, which are necessary for long service life and high performance.
Nickel 200 Alloy Wire, Nickel Alloy N02200 Wire, Nickel 201 Wire Supplier, Nickel 201 Wire Exporter, Nickel Alloy 200 Welding Wire, ASTM B160 200 Nickel Alloy Wire, Nickel 201 Wire Manufacturer in India.
We focus on client satisfaction by keeping Nickel 200 wire inventory constant and offering tailored services which meet particular project demands. For this reason, we are preferred over other Nickel 201 wire manufacturers, given that we only produce wires that meet consistency, mechanical strength, and material purity tests. Our wires are widely used in automotive, food processing and petrochemical industries. In the supply of Nickel 200 and Nickel 201 wire, we guarantee timely delivery of orders and superior customer relations, thus being the most sought after company.
Specifications Of Nickel 200 Wires
| Standard | ASTM B160 ASME SB160 |
| Dimensions | ANSI/AWCI – 01 -1992 and ASTM E 2016-11 and RRW 360 |
| Length | Cut Lengths: 0.125" to 72" No Limit on Spooled Lengths |
| Diameter | 0.0004" to 0.040" 10 microns to 1.0 mm Other Sizes on Request |
| Wire Density | 8.89 g/cm3 |
|
580-750 |
|
as standard |
|
28-30 |
| Surface | Polished bright, Smooth, Bare, Enamel, PTFE, Ceramic, Plated |
| Tempers | Tempers range from dead soft annealed to ultra spring temper |
| Welded Wire mesh | Roll Width: 24inch, 36inch, 1Metre, 48inch, 72inch, or 84inch Roll Length: 100feet or 150feet |
| Wire Mesh Weaving Methods | plain weave, twill weave, dutch weave |
| Technique | Cold Rolled, hot rolled |
| Condition | M, Y, 1/2Hard |
| Offered in a wide range of packages including: | Spool Reel Coil Bobbin Carrier Custom packaging provided from as low as 1lb to 200lb tapered plastics |
| Form | Filler Wire, Flat Wire, Coil Wire, Electrode Wire, Welding Wire, Wire mesh, Knitted wire mesh, filter mesh, mig wire, tig wire, spring wire, stranded and twisted wire |
| Test Certificates | Tensile Testing Hardness Testing Metallographic Inspection / Investigation Corrosion Testing Chemical Analysis Wrap Testing Elevated Temperature Testing Stress Rupture Testing (Creep) |
Available Variations in Nickel 200 Wires
Welding Wire
Nickel 200 Welding Wire
Bright Wire
Nickel Alloy 201 Bright Wire
Wire Spool
Alloy 200 Wire Spool
Wire Coil
Nickel Alloy 200 Wire Coil
Mig Wire
200 Nickel Mig Wire
Woven Wire Mesh
Nickel 201 Woven Wire Mesh
ASME SB160 Nickel 200 Wires Equivalent Grades
| STANDARD | UNS | WERKSTOFF NR. | GOST | EN | JIS | BS | AFNOR |
| Nickel 200 | N02200 | 2.4066 | НП-2 | Ni 99.2 | NW 2200 | NA 11 | N-100M |
| Nickel 201 | N02201 | 2.4068 | НП-2 | LC-Ni 99 | NW 2201 | NA 12 | – |
Chemical Composition of Nickel 200 Wires
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Nickel 200 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
| Nickel 201 | 0.02 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
Mechanical Properties of Nickel 200 Wires
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Nickel 200 / 201 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
Other Types Of Nickel 200 Wire
- UNS N02200 Wire
- Nickel Alloy 200 Spool Wire
- 200 Nickel Cold Heading Wire
- Alloy 200 Spring Wire
- Nickel 201 Cold Drawn Wire
- Nickel 200 Ultra Fine Wires
- Nickel Alloy 200 Square Wire
- Nickel 200 Filler Wire
- Nickel 200 Tig Wire
- Nickel 200 Welding Wire
- Nickel Alloy 200 Wire Rope
- Nickel 201 Wire Mesh Manufacturer
- ASME SB160 Nickel 200 Wire
- Nickel 201 Wire Price
- UNS N02201 Wire
- Grade 200 Nickel Wire Rope
- 200 Nickel Industrial Wires
- 200 Nickel Welding Wire
- Nickel 200 Wire
- Nickel Alloy 201 Wire Mesh
- 2.4066 Wire
- Wire Mesh Nickel 200
- Nickel 200 Netting Wiremesh
- ASTM B160 Nickel 200 Woven Wire mesh
- Nickel Alloy 200 Wire Bobbin
- Nickel 201 Crimped Wire Mesh
- Nickel 201 Wire Price in India
- Alloy 201 Mig Wire
- Alloy 201 Knitted Wire Mesh
- Nickel 201 Wire
- Nickel 200 Knitting Wire
- 2.4068 Wire
- ASTM B160 200 Nickel Wire
- Nickel 200 Weld Mesh
Nickel 200 Wires Industrial Application
Nickel 200 / 201 wires find a wide range of applications in various industries. Their excellent corrosion resistance makes them suitable for handling and storing corrosive chemicals in chemical processing equipment. They are also used in electrical and electronic components, such as resistance wires, where their high electrical conductivity is beneficial. In the marine industry, these wires are employed for seawater valves, pump shafts, and heat exchangers due to their resistance to marine environments. Additionally, Nickel 200 / 201 wires are utilized in the food processing and aerospace industries, as well as in the manufacture of batteries and electronic devices.
-
-
Power Plant Generation
-
Marine Industry
-
Petrochemical Industry
-
Chemical Industry
-
Aerospace Industry
-
Sugar Industry
Nickel 200 Wires Price Details
Prices for Nickel 200 Wire Products are very affordable. Please click on the request a quote button or Click Here to request the updated price list and ready stock information along with your requirement. Bhansali Enterprise Nickel 200 maintains a stock of all standard items and can export them at the best price ASME SB160 200 Nickel Alloy Wires, Coil Wire, Ribbon Wires, Wiremesh, Wire Bobbin etc.
