Copper Nickel 70/30 filler wires are welding consumables specifically designed to join or repair components made from Copper Nickel 70/30 or similar alloys. Copper Nickel 70/30 is a copper-nickel alloy that contains approximately 70% copper and 30% nickel, along with trace amounts of other elements like iron and manganese. The filler wires ensure a strong and reliable weld while maintaining the alloy's excellent corrosion resistance and mechanical properties.

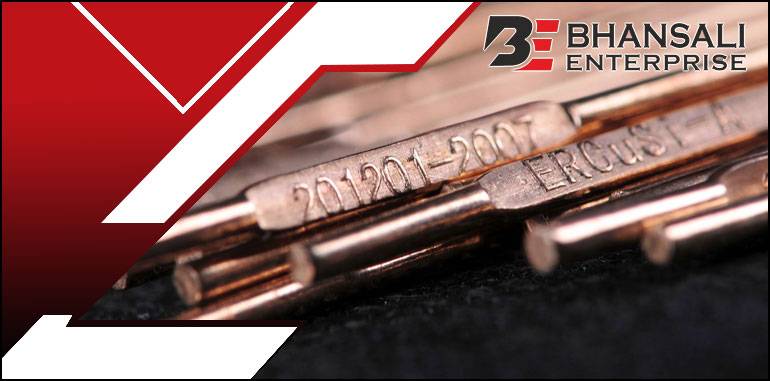

Cupro Nickel 70/30 Filler Wires

Bhansali Enterprises Specifications Of Copper Nickel 70/30 Filler Wires

Size Range 0.60 mm to 1.60 mm (0.025” to 0.062”)
Diameter 1/16" (1.6 mm)
Thickness 1.6-3.2mm
Materials Copper Nickel
Product Type Filler Wire

LogoCopper Nickel 70/30 Filler Wires Equivalent Grades

cta one shape 1
STANDARD WERKSTOFF NR. UNS
Copper Nickel 70/30 2.0882 C71500

LogoChemical Composition of Copper Nickel 70/30 Filler Wires

cta one shape 1
Grade Cu Mn Pb Ni Fe Zn
Cu-Ni 70-30 65.0 min 1 max .05 max 29-33 0.4-1.0 1 max

LogoMechanical Properties of Copper Nickel 70/30 Filler Wires

cta one shape 1
Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Copper Nickel 70-30 0.323 lb/in3 at 68 F 2260 F 50000 psi 20000 psi 30 %

Bhansali EnterprisesCopper Nickel 70/30 Filler Wires Product Features

Bhansali Enterprises Available Variations in Copper Nickel 70/30 Filler Wires

Bhansali EnterprisesOther Types Of Cu-Ni 70/30 Filler Wire

  • Cu-Ni 70/30 Filler Wires Manufacturer
  • Copper Nickel 70/30 Mig Filler Rod
  • UNS C71500 Filler Wire
  • Copper Nickel 70/30 Filler Wire Supplier
  • 70/30 Copper Nickel Industrial Filler Wires
  • Cupro Nickel 70/30 Filler Wire
  • Copper Nickel 70/30 Mig Welding Filler Wire
  • Copper Nickel 70/30 Filler Wire
  • Cupro Nickel 70/30 Mig Filler Wire
  • CuNi 70/30 TIG Filler Wire
  • Copper Nickel 2.0882 Filler Wire
  • Cu-Ni 70/30 Filler Wire Supplier
  • CuNi 70/30 Filler Wire
  • CuNi 70/30 Welding Filler Wires
  • Cu-Ni 70/30 Welding Filler Rods
  • Grade 70/30 Copper Nickel Filler Wire
  • Copper Nickel 70/30 Tig Filler Wire
  • Filler Wire Copper Nickel 70/30
  • Cu-Ni 70/30 Filler Welding Wire
  • Copper Nickel 70/30 TIG Filler Rod
  • CuNi C71500 Filler Wire
  • Cupro Nickel 70/30 Welding Filler Rod
  • Cupro Nickel 70/30 Filler Mig Wire
  • Copper Nickel 70/30 Tig Welding Filler Wire
  • Copper Nickel 70/30 Welding Filler Wire
  • CuNi 70/30 Filler Rod

Bhansali EnterprisesCupro Nickel 70/30 Filler Wires Industrial Application

Copper Nickel 70/30 filler wires find a wide range of applications in the marine and offshore industries, including seawater piping systems, condensers, and heat exchangers. The alloy's corrosion resistance and antimicrobial properties make it highly suitable for applications where contact with seawater or brine is frequent. It is also used in desalination plants, where its resistance to chloride-induced corrosion is crucial. In addition to marine applications, Copper Nickel 70/30 filler wires are employed in chemical processing, power generation, and various industrial settings where resistance to corrosion, biofouling, and erosion is essential.

Shape
about three shape 4
Shape
Shape
  • Oil & Gas Industry

  • Power Plant Generation

  • Marine Industry

  • Petrochemical Industry

  • Chemical Industry

  • Aerospace Industry

  • Sugar Industry

Bhansali EnterprisesCu-Ni 70/30 Filler Wires Price Details

Prices for Copper Nickel 70/30 Filler Wire Products are very affordable. Please click on the request a quote button or Click Here to request the updated price list and ready stock information along with your requirement. Bhansali Enterprise Copper Nickel 70/30 maintains a stock of all standard items and can export them at the best price CuNi 70/30 Filler Wires, Tig Filler Wire, Mig Filler Wires, Welding Filler Wire etc.
