Monel 400 Pipe Fittings are a type of nickel-copper alloy known for their exceptional resistance to corrosion, particularly in marine and chemical environments. These fittings are commonly used in industries that require robust components capable of withstanding aggressive conditions while maintaining their mechanical integrity.

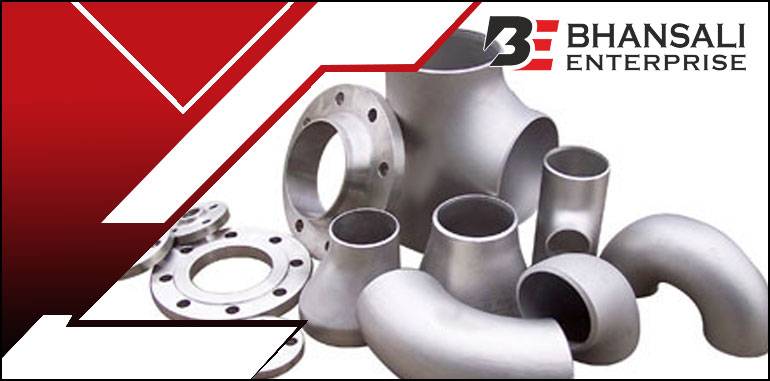

Monel Alloy 400 Pipe Fittings

Bhansali EnterprisesMonel 400 Buttweld Pipe Fittings Specifications

Standards ASTM B366 / ASME SB366
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Size Seamless Butt Weld Fittings : 1/2″ – 10″
Welded Butt Weld Fittings : 1/2″ – 48″
Type Seamless / Welded / Fabricated
Schedule SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Form 90 Elbow, 45 Elbow, Long Radius Elbow' Short Radius Elbow, Concentric Reducer, Eccentric Reducer, Equal Tee, Unequal Tee, Lateral Tee, Cross, Bends 1.5d, 3d, 5d, 10d, U bend, 180 Deg Bend, Short Stub End, Long stub end, Concentric Reducer,End Cap, Dish Cap, Lap-joint Stub End

LogoMonel Alloy 400 Pipe Fittings Equivalent Gardes

cta one shape 1
STANDARD UNS WNR. AFNOR EN JIS BS GOST
Monel 400 N04400 2.4360 NU-30M NiCu30Fe NW 4400 NA 13 МНЖМц 28-2,5-1,5

LogoChemical Composition of Monel Alloy 400 Buttweld Fittings

cta one shape 1
Grade Ni C Al Mn Si Fe Cu S
Monel 400 63.0 min 0.3 max 0.50 max 2.0 max 0.5 max 1.0 - 2.5 28.0 - 34.0 0.02 max

LogoMechanical Properties of Monel Alloy 400 Butt weld Fittings

cta one shape 1
Density Melting Point Yield Strength (0.2%Offset) Tensile Strength Elongation
8.8 g/cm3 1350 °C (2460 °F) Psi – 35,000 , MPa – 240 Psi – 80,000 , MPa – 550 40 %

Bhansali EnterprisesNickel Alloy 400 Pipe Fittings Product Features

Bhansali EnterprisesAvailable Variations in Monel® Alloy 400 Pipe Fittings

Monel 400 Pipe Elbow

Pipe Elbow

Monel 400 Pipe Elbow

Monel 400 Pipe Tee

Pipe Tee

Monel 400 Pipe Tee

Alloy 400 Cross

Cross

Alloy 400 Cross

Monel Alloy 400 Reducer

Reducers

Monel Alloy 400 Reducer

Monel Alloy 400 Pipe Cap

Pipe Cap

Monel Alloy 400 Pipe Cap

Monel Alloy 400 Stubends

Stubends

Monel Alloy 400 Stubends

Bhansali EnterprisesOther Types Of Nickel Alloy 400 Pipe Fittings

  • Alloy 400 Pipe Fittings Manufacturer
  • Monel® Alloy 400 Pipe Fittings Supplier
  • Monel 400 45 Deg Short Radius Elbow
  • Monel 400 Industrial Pipe Fittings
  • Monel 400 Pipe Fittings
  • UNS N04400 Butt weld Pipe Fittings
  • Austenitic Monel 400 Buttweld Fittings
  • Monel 2.4360 Butt Weld Cross
  • Nickel Alloy 400 Pipe Fittings
  • Alloy 400 Concentric Reducer
  • Monel 2.4360 Pipe Fittings
  • Alloy 400 Butt weld Fittings
  • Grade 400 Monel Pipe Fittings
  • Monel 400 Eccentric Reducers
  • Monel 2.4360 Pipe Fittings
  • Monel 400 Fittings
  • Monel 400 Butt Weld Reducing Tee
  • ANSI/ASME B16.28 Butt Weld Elbow Alloy 2.4858
  • Monel® Alloy 400 Seamless Pipe Fittings
  • Nickel Alloy 400 Swage Nipple
  • Alloy 400 90 Degree LR Elbow
  • Monel 2.4360 Butt weld Fittings
  • Monel 400 Buttweld Pipe Fittings
  • Monel Alloy 400 Two Joint Pipe Fittings
  • Monel 2.4360 Pipe Fittings
  • Monel Alloy 400 Buttweld Equal Cross
  • Monel® Alloy 400 Reducing Elbow
  • Alloy 400 Long Stub Ends
  • Monel 400 1D, 2D, 3D, 5D Pipe Elbow
  • Alloy 400 Two Halve Butt weld Fittings
  • Monel 2.4360 Pipe Cap
  • Monel N04400 Pipe Fittings
  • Alloy 400 180° Long Radius Elbow
  • Monel 400 SR Elbow
  • Monel Alloy 400 Pipe Nipple
  • Monel 400 Unequal Pipe Tee
  • ASME SB366 400 Monel Buttweld Fittings
  • Monel® Alloy 400 Pipe End Cap
  • Monel Alloy 400 Fittings
  • Monel 400 Pipe Fittings
  • Monel Alloy 400 Buttweld Fittings
  • Monel® Alloy 400 U Bend
  • Monel 400 Pipe Fittings
  • ASTM B366 Monel Alloy 400 Pipe Fittings
  • Nickel Alloy 400 Bends
  • Monel Alloy N04400 Short Stub Ends

Bhansali EnterprisesMonel® Alloy 400 Fittings Industrial Application

Monel 400 Pipe Fittings find extensive use in various industrial applications. They are commonly employed in marine environments, including seawater handling systems, boat and shipbuilding, and offshore platforms. Their resistance to sulfuric acid and other corrosive chemicals makes them suitable for use in chemical processing plants and equipment. Monel 400 Pipe Fittings are also used in heat exchangers, boiler feedwater heaters, and hydrocarbon refining due to their excellent resistance to corrosion and high-temperature performance.

Shape
about three shape 4
Shape
Shape
  • Oil & Gas Industry

  • Power Plant Generation

  • Marine Industry

  • Petrochemical Industry

  • Chemical Industry

  • Aerospace Industry

  • Sugar Industry

Bhansali EnterprisesMonel 400 Buttweld Fittings Price Details

Prices for Monel Buttweld Fittings Products are very affordable. Please click on the request a quote button or Click Here to request the updated price list and ready stock information along with your requirement. Bhansali Enterprise Monel 400 maintains a stock of all standard items and can export them at the best price Monel 400 Pipe Fittings, Buttweld Elbow, Tee, Cross, Reducers, Pipe Nipple, Stub Ends, Pipe End Cap, Bends etc.
