Titanium Grade 1, Grade 7, Grade 9, and Grade 23 filler wires are welding consumables specifically designed for joining titanium alloys, each possessing unique properties suitable for different applications.

Titanium Grade 1 filler wires are commercially pure titanium and offer excellent corrosion resistance, high ductility, and good weldability. They are the most ductile and softest among titanium grades, making them ideal for applications that require formability and ease of welding. Grade 1 filler wires find use in industries such as chemical processing, marine, and medical, where corrosion resistance and biocompatibility are essential.

Titanium Grade 7 filler wires are alloyed with palladium, which enhances their corrosion resistance, particularly in reducing environments. They offer excellent weldability and are well-suited for welding Grade 7 and Grade 16 base metals. These filler wires are commonly used in chemical and petrochemical applications due to their resistance to crevice corrosion and aggressive media.

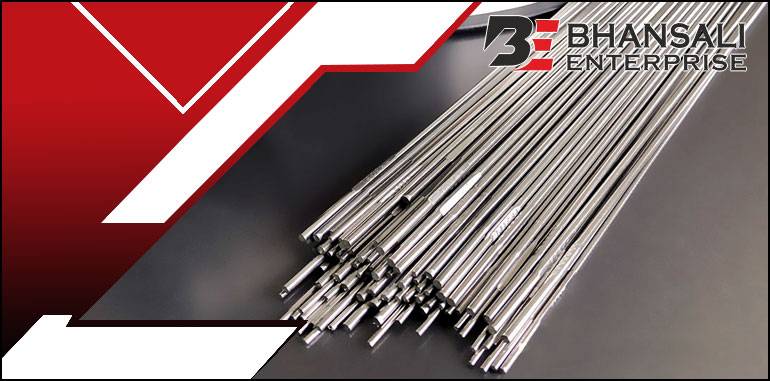

Titanium Alloy Grade 23 Filler Wires

Titanium Grade 23 filler wires, also known as Ti-6Al-4V ELI (Extra Low Interstitials), are alloyed with aluminum and vanadium, similar to Grade 9. However, Grade 23 has lower oxygen and iron content, providing enhanced ductility and fracture toughness. These filler wires are often utilized in medical and dental applications, as well as aerospace and sports equipment, where biocompatibility, strength, and lightweight properties are crucial.

All these titanium filler wires exhibit excellent corrosion resistance, particularly in various aggressive environments, such as seawater, acids, and chlorides. Their resistance to corrosion stems from the formation of a protective oxide layer on their surface, which prevents further deterioration.

Bhansali Enterprises Specifications Of Titanium Gr 1 Filler Wires

Size Range 0.60 mm to 1.60 mm (0.025” to 0.062”)
Diameter 1/16" (1.6 mm)
Thickness 1.6-3.2mm
Materials Titanium
Product Type Filler Wire

LogoTitanium Grade 7 Filler Wires Equivalent Grades

cta one shape 1
STANDARD WERKSTOFF NR. UNS
Titanium Gr 1 3.7025 R50250
Titanium Gr 7 3.7235 R52400
Titanium Gr 9 3.7195 R56320
Titanium Gr 23 3.7165 R56401

LogoChemical Composition of Titanium Gr.9 Filler Wires

cta one shape 1
Grade C N O H Ti Fe
Titanium Gr 1 .08 max .03 max .18 max .015 max bal .20 max
Titanium Gr 7 .08 max .03 max .25 max .015 max bal .30 max
Titanium Gr 9 .08 max .03 max .15 max .015 max - .25 max
Titanium Gr 23 0.08 0.03 0.13 0.0125 balance -

LogoMechanical Properties of Titanium Gr 23 Filler Wires

cta one shape 1
Grade Tensile Strength, min Yield Strength (0.2% Offset) Elongation 2 in. or 50 mm
min max
Ksi (Mpa) Ksi (Mpa) Ksi (Mpa) gage length min %
Grade 1 35 (240) 25 (170) 45 (310) 24
Grade 7 50 (345) 40 (275) 65 (450) 20
Grade 9 90 (620) 70 (483) 45 15
Grade 23 120 (828) 110 (759) 10

Bhansali EnterprisesTitanium Grade 1 Filler Wires Product Features

Bhansali Enterprises Available Variations in Titanium Gr.7 Filler Wires

Bhansali EnterprisesOther Types Of Ti Gr.23 Filler Wire

  • Titanium Alloy Gr 1 Filler Wire
  • Titanium Alloy Grade 7 Mig Filler Wire
  • Titanium Grade 9 Mig Welding Filler Wire
  • Ti Alloy Gr.23 Filler Wire Supplier
  • Titanium Grade 1 Filler Wire
  • Titanium Gr 7 Mig Filler Rod
  • Titanium 3.7025 Filler Wire
  • UNS R50250 Filler Wire
  • Ti Alloy Gr 9 TIG Filler Wire
  • Ti Grade 23 Filler Wires Manufacturer
  • Ti Alloy 3.7195 Filler Wire
  • Titanium Gr 7 Filler Wire Supplier
  • Ti R56320 Filler Wire
  • Grade 9 Titanium Industrial Filler Wires
  • Ti Alloy 3.7165 Welding Filler Rods
  • Titanium Gr 1 TIG Filler Rod
  • Titanium 3.7235 Tig Welding Filler Wire
  • Titanium R52400 Filler Wire
  • Ti Grade 9 Welding Filler Wires
  • Ti Alloy Gr 23 Filler Rod
  • Titanium Alloy Grade 1 Filler Mig Wire
  • Filler Wire Titanium Gr.7
  • Ti Alloy Gr 9 Filler Welding Wire
  • Grade 23 Titanium Filler Wire
  • Titanium Grade 1 Tig Filler Wire
  • Titanium Alloy Grade 7 Welding Filler Rod
  • Titanium Gr.9 Welding Filler Wire
  • Titanium R56401 Filler Wires

Bhansali EnterprisesTitanium Alloy Gr.1 Filler Wires Industrial Application

Titanium Grade 9 filler wires, also known as Ti-3Al-2.5V, are alloyed with aluminum and vanadium. They exhibit high strength, good weldability, and excellent corrosion resistance, making them suitable for a wide range of applications, including aerospace, marine, and chemical processing industries. Grade 9 filler wires are commonly used to join Grade 5 (Ti-6Al-4V) base metals, which are widely used in aerospace and engineering applications.

Shape
about three shape 4
Shape
Shape
  • Oil & Gas Industry

  • Power Plant Generation

  • Marine Industry

  • Petrochemical Industry

  • Chemical Industry

  • Aerospace Industry

  • Sugar Industry

Bhansali EnterprisesTi Alloy Grade 7 Filler Wires Price Details

Prices for Titanium Grade 9 Filler Wire Products are very affordable. Please click on the request a quote button or Click Here to request the updated price list and ready stock information along with your requirement. Bhansali Enterprise Titanium Gr.23 maintains a stock of all standard items and can export them at the best price Titanium Gr 1 Filler Wires, Tig Filler Wire, Mig Filler Wires, Welding Filler Wire etc.
