Aluminium Alloy 2024 Plate is a high-strength material that belongs to the 2xxx series of aluminum alloys. Its primary alloying element is copper, with smaller amounts of magnesium and manganese. This alloy is well-regarded for its exceptional strength-to-weight ratio, making it a preferred choice for applications where structural integrity and lightweight properties are essential.

Aluminium Alloy 2024 sheets, plates, and coils are known for their excellent machinability and formability. This characteristic allows for intricate shaping and fabrication, catering to industries such as aerospace, transportation, and precision machinery. The alloy's ability to hold tight tolerances and achieve intricate designs makes it valuable for manufacturing components like aircraft structural parts, machine fittings, and hardware.

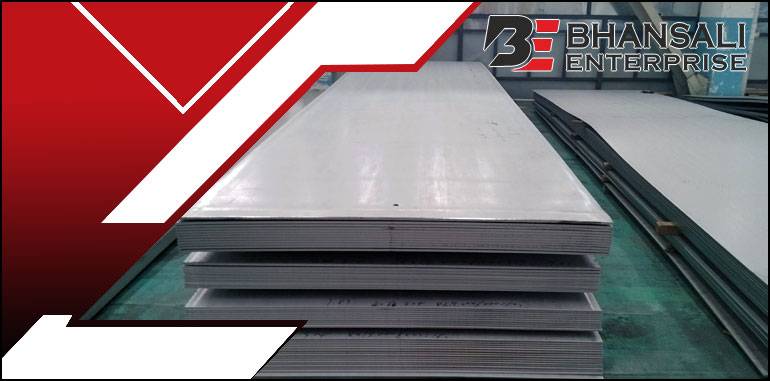

Aluminium 2024 Plates

Bhansali Enterprises Specifications Of Alloy 2024 Plates

Standards ASTM B209 / ASME SB209, ANSI H35.1/H35.1(M)
Temper O, F, H12, H14, H16, H18, H19, H22, H24, H26, H32, H34, H36, H38, H111, H112, H321, T3, T4, T5, T6, T7, T351, T451, T651, T851
Thickness 0.2~300mm
Width 500~2500mm
Length 500~10000mm
Surface Bright, polished, hair line, brush, sand blast, checkered, embossed, etching, etc.
Finish Mill, Customer specific finish
Aluminum Sheet/ Plate Coating PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating
Type Hot-Rolled (HR) / Cold-Rolled (CR) Sheet / Plates/ Strips/ Coils/ Chequered Plates

LogoAluminium 2024 Sheets Equivalent Grades

cta one shape 1
European Standard OLD WNr UNS ISO USA (AA) GERMANY (DIN)
AW-AlCu4Mg1 AU4G1 3.1355 A92024 AlCu4Mg1 2024 AlCuMg2

LogoChemical Composition of Aluminium Alloy 2024 Coils

cta one shape 1
Grade Al Si Fe Cu Mn Mg Cr Zn Ti Other
min. Bal     3.80 0.30 1.20
max. Bal 0.50 0.50 4.90 0.90 1.80 0.10 0.25 0.15 0.05

LogoMechanical Properties of Alloy 2024 Sheet

cta one shape 1
Temper Tensile Strength Yield Strength Elongation
  KSI KSI %
(annealed) 32 14 12
T3 63 42 15

Bhansali EnterprisesAluminum 2024 Plates Product Features

Bhansali Enterprises Available Variations in Aluminium 2024 Sheets

Aluminium 2024 Sheets

Sheets

Aluminium 2024 Sheets

Aluminium 2024 Plates

Plates

Aluminium 2024 Plates

Aluminium 2024 Coils

Coils

Aluminium 2024 Coils

Aluminum 2024 Strips

Strips

Aluminum 2024 Strips

Aluminium 2024 Foils

Foils

Aluminium 2024 Foils

Aluminum 2024 Circle

Circle

Aluminum 2024 Circle

Bhansali EnterprisesOther Types Of Aluminum 2024 Sheet

  • Aluminum 2024 Plate Manufacturer
  • Aluminium Alloy 2024 Coils Supplier
  • Mirror Finish Aluminium 2024 Sheet
  • UNS A92024 Sheets
  • Aluminium 2024 Chequered Plate
  • Aluminum 2024 Coils
  • Aluminum Coils
  • Aluminium 2024 Sheets
  • 2024 Aluminum Sheet Coils
  • 2024 Aluminium HR Coils
  • Aluminium 2024 Industrial Coils
  • Aluminum Alloy 2024 Plates
  • Aluminium Alloy Plates
  • Aluminum Alloy 2024 Coils
  • Aluminium Alloy 2024 Plate
  • Aluminium Shims
  • Aluminium Plates
  • 2024 Aluminium Alloy Sheets
  • ASTM B209 2024 Aluminium Alloy Sheets
  • 2024 Aluminium Alloy Rolls
  • Aluminum 2024 Rings
  • Aluminium 3.1355 Plates
  • 2024 Aluminium Shim Coils
  • Polish Aluminum Sheet 2024
  • Aluminium Alloy 2024 Circle
  • Aluminium A92024 Hot Rolled Plate
  • 2024 Aluminium Cold Rolled Coils
  • Aluminium 2024 Slit Coils
  • Aluminium Alloy 2024 Sheets
  • Aluminium 2024 CR Plate
  • ASME SB209 Alloy 2024 Plate
  • 2024 Aluminium Perforated Sheet
  • 2024 Aluminum Mirror Sheet
  • 2024 Aluminium Alloy Foils
  • Aluminum 2024 Strips
  • 2024 Aluminium Alloy Strips Coil
  • Alloy 2024 Coils
  • Aluminum 2024 Shims

Bhansali EnterprisesAluminium 2024 Plates Technical Data

Bhansali EnterprisesAlloy 2024 Sheets Industrial Application

Aluminium Alloy 2024 Plates find extensive applications across various industries. In the aerospace sector, it is commonly used for manufacturing aircraft and spacecraft components, such as wing and fuselage structures, due to its lightweight and high-strength characteristics. In the automotive industry, it finds use in structural components, wheels, and parts that require both strength and weight savings. Additionally, it is utilized in precision machinery, where its machinability and dimensional stability are critical for creating intricate parts and assemblies.

Shape
about three shape 4
Shape
Shape
  • Oil & Gas Industry

  • Power Plant Generation

  • Marine Industry

  • Petrochemical Industry

  • Chemical Industry

  • Aerospace Industry

  • Sugar Industry

Bhansali EnterprisesAluminum 2024 Plate Price Details

Prices for Aluminum Alloy 2024 Sheets Plate & Coils Products are very affordable. Please click on the request a quote button or Click Here to request the updated price list and ready stock information along with your requirement. Bhansali Enterprise Aluminium 2024 maintains a stock of all standard items and can export them at the best price 2024 Aluminium Chequered Plate, Perforated Sheet, Shim Sheets, Slit Coils etc.
