Aluminium Alloy 2024 Angles & Flat belong to a prominent class of high-strength aluminum alloys, prized for their exceptional strength-to-weight ratio, good fatigue resistance, and widespread versatility. Characterized by a specific chemical composition, Aluminium Alloy 2024 is a preferred choice for applications where robust mechanical properties and lightweight design are critical.

The chemical composition of Aluminium Alloy 2024 consists of approximately 4.4% copper, 1.5% magnesium, and traces of other elements such as iron and silicon. This composition imparts remarkable strength and excellent machinability, making it a sought-after material for aerospace components, structural parts, and precision-machined elements. The alloy's copper content contributes to its enhanced fatigue resistance, crucial for applications involving repetitive loading and stress.

Heat treatment plays a crucial role in optimizing Aluminium Alloy 2024's mechanical properties. It is often solution heat treated and naturally aged to enhance its strength and hardness, making it capable of withstanding demanding operating conditions.

Aluminium Alloy 2024 is not as corrosion-resistant as some other aluminum alloys. It is advisable to employ protective measures such as coatings or anodizing when using this alloy in environments prone to corrosion.

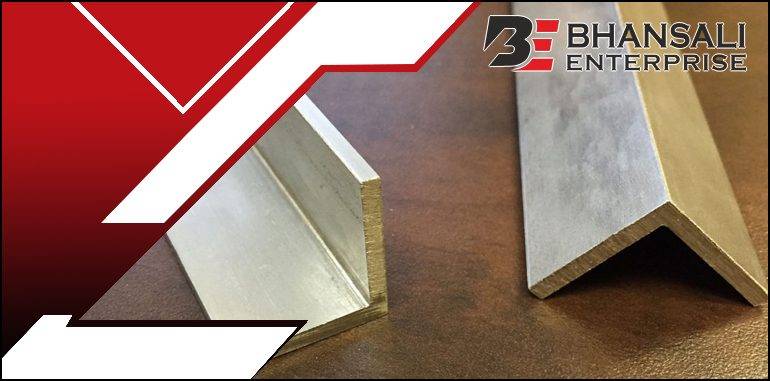

 Aluminium 2024 Angles & Flats

The standout feature of Aluminium Alloy 2024 Angles & Flat lies in its high strength, making it particularly well-suited for applications demanding reliable performance under heavy loads. Its remarkable strength-to-weight ratio makes it a favored choice in aerospace manufacturing, where lightweight yet robust components are essential for fuel efficiency and flight safety. Moreover, it finds utility in various industries, including automotive and sporting goods, where the combination of strength and weight efficiency is pivotal.

Bhansali Enterprises Specifications Of Aluminium 2024 Angles and Flats

Standard ASTM B221, B211, B565, B316, AMS 4121 2024
Dimension ASTM, ASME, AMS, GB/T, JIS
Angle Sizes 5mm to 9mm
Flat Sizes 2mm ~ 100mm etc.
Thickness 3.0mm – 120mm
Length 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Manufacturing Process Hot rolled (HR), Cold rolled (CR), Galvanized etc

LogoASME SB221 Aluminium Alloy 2024 Angle & Flat Equivalent Grades

cta one shape 1
European Standard OLD WNr UNS ISO USA (AA) GERMANY (DIN)
AW-AlCu4Mg1 AU4G1 3.1355 A92024 AlCu4Mg1 2024 AlCuMg2

LogoChemical Composition of Aluminium 2024 Angles and Flats

Shape
Grade Al Si Fe Cu Mn Mg Cr Zn Ti Other
min. Bal     3.80 0.30 1.20
max. Bal 0.50 0.50 4.90 0.90 1.80 0.10 0.25 0.15 0.05

LogoMechanical Properties of Aluminium Alloy 2024 Angles & Flats

cta one shape 1
Temper Tensile Strength Yield Strength Elongation
  KSI KSI %
(annealed) 32 14 12
T3 63 42 15

Bhansali Enterprises Available Variations in Aluminium 2024 Angles & Flats

Aluminium 2024 Equal Angle

Equal Angles

Aluminium Alloy 2024 Equal Angle

Aluminium 2024 Unequal Angles

Unequal Angle

Aluminium Alloy 2024 Unequal Angle

Aluminium 2024 'L' Shaped Angle

'L' Shaped Angle

Aluminium Alloy 2024 'L' Shaped Angle

Aluminium 2024 90 Degree Angle

90 Degree Angle

Aluminium 2024 90 Degree Angle

Aluminium 2024 'T' Shape Angle

'T' Shape Angle

Aluminium Alloy 2024 'T' Shape Angle

Aluminium 2024 Cold Rolled Flats

Cold Rolled Flats

Aluminium 2024 Cold Rolled Flats

Aluminium 2024 Hot Rolled Flat

Hot Rolled Flat

Aluminium 2024 Hot Rolled Flat

Aluminium 2024 Patta

Patta

Aluminium 2024 Patta

Aluminium 2024 Patti

Patti

Aluminium 2024 Patti

Bhansali EnterprisesOther Types Of Aluminium 2024 Angle & Flat

  • 3.1355 Aluminium Angles
  • Aluminum 2024 Cold Drawn Angle
  • UNS A92024 Architectural Angle
  • ASTM B221 Aluminium Alloy 2024 Angle
  • ASME SB221 2024 Aluminum Angle
  • WNR 3.1355 Industrial Angles
  • 2024 Aluminum Unequal Leg Angle
  • Aluminium 3.1355 Hot Rolled Angle
  • Aluminium Alloy 2024 Metric Angle
  • ASTM B211 Aluminium Alloy 2024 Angle
  • Aluminium 3.1355 Equal Leg Angle
  • 2024 Aluminum Polished Flats
  • UNS A92024 Galvanized Flat
  • Aluminum Alloy 2024 Galvanized Angle
  • Aluminium Alloy 2024 90 Deg Angle
  • ASTM B221 Aluminium 2024 L Angles
  • Aluminium Alloy 2024 Polished Angles
  • Aluminum Alloy 3.1355 Flat Rods
  • Aluminum 2024 Flat Patti
  • Aluminium Alloy 2024 Polished Flat
  • 2024 Aluminium Polished Flats
  • A92024 Aluminium Cold Rolled Patta
  • UNS A92024 Hot Rolled Patti
  • ASME SB 211 Aluminum Alloy 2024 CR Flats
  • Aluminium 2024 Plazma Cut Flat
  • Aluminum 3.1355 Flat
  • 2024 Aluminium Alloy Machined Cut Flats
  • Aluminium Alloy 2024 Forged Patti
  • 3.1355 Cold Rolled Patta
  • Aluminum Alloy A92024 Flats Stock
  • Aluminum 2024 Industrial Flats
  • ASME SB 221 Aluminium Alloy 2024 Flats
  • ASME SB565 Aluminium Alloy 2024 Flats
  • Aluminium 2024 Pickled Flats

Bhansali EnterprisesAluminium 2024 Angles and Flats Technical Data

Bhansali EnterprisesAluminium 2024 Angles & Flat Industrial Application

Shape
about three shape 4
Shape
Shape
  • Oil & Gas Industry

  • Power Plant Generation

  • Marine Industry

  • Petrochemical Industry

  • Chemical Industry

  • Aerospace Industry

  • Sugar Industry

Bhansali EnterprisesAluminium 2024 Angles & Flats Price Details

Prices for aluminium alloy 2024 angles and flats Products are very affordable. Please click on the request a quote button or Click Here to request the updated price list and ready stock information along with your requirement. Bhansali Enterprise aluminium alloy 2024 maintains a stock of all standard items and can export them at the best price ASME SB221 2024 aluminium T' shape angle, 90 degree angle, equal angle, unequal angle, hot rolled flat, patta, patti etc.
