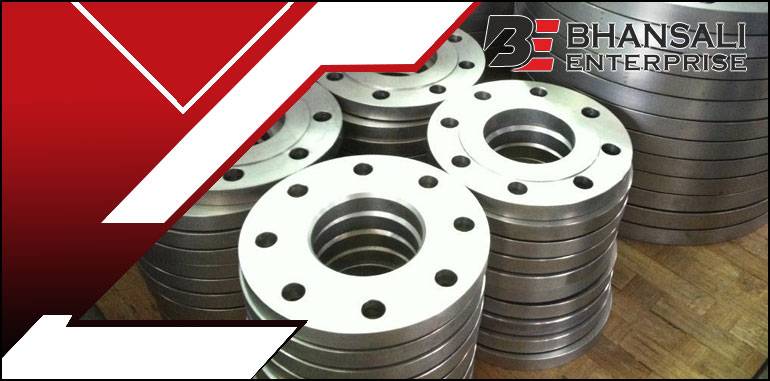

Titanium Grade 1 Flanges
Titanium Gr 1 Flanges, Gr 1 Titanium Flanges Supplier, Titanium Gr 1 Flanges Exporter, Titanium Gr 1 Flanges Manufacturer, Titanium Gr 7 Flanges, Titanium Gr 7 Flanges Supplier, Titanium Gr 7 Flanges Exporter, Gr 7 Titanium Flanges Manufacturer in Mumbai.
Bhansali Enterprise is an eminent titanium Gr 1 flange manufacturer, supplier and exporter of titanium products worldwide. These ASTM B363 Titanium Alloy Gr.1 Flanges contain a fuller description of the materials and sizes we have in stock and the different types of Titanium Alloy Gr.1 Flanges available. These flanges are offered competitively to ensure we deliver affordable solutions to different industrial applications. We are committed to delivering products that meet stringent industry standards, supported by certifications such as ISO 9001:2015. Our Titanium Gr 1 Flanges are used in industries like chemical processing, marine, aerospace and power, where high strength and resistance to adverse conditions are needed.
Titanium Gr 1 Flanges have various characteristics, such as high weldability, high ductility and excellent resistance to oxidation. We manufacture various types of Titanium Gr 1 flanges imports, including slip-on, blind, weld neck and socket-weld flanges that can be used in appropriate environments. These flanges are used in piping systems to join pipes, valves and other hardware to make perfect and leakage free connections. Our Titanium Gr 1 Flanges are used in harsh environments such as heat exchange, condensers, or the desalination industry.
Titanium Gr 9 Flanges, Titanium Gr 9 Flanges Supplier, Titanium Gr 9 Flanges Exporter, Gr 9 Titanium Flanges Manufacturer, Titanium Gr 23 Flanges, Titanium Gr 23 Flanges Supplier, Gr 23 Titanium Flanges Exporter, Titanium Gr 23 Flanges Manufacturer in India.
We ensure that we offer customers high-quality products at reasonable prices. Our titanium grade 1 flange price is reasonable in the market without compromising the quality or performance of the product. Our flanges are highly tested and checked to meet international standards before shipping. The reliable stockist in the titanium flange market strategic management concentrates on timely delivery, effective customer service, and market compliance.
Specifications Of Titanium Grade 1 Flanges
| Standard | ASTM B381 / ASME SB381 |
| Dimension | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Flanges Size | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
| Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Pressure Class | PN 2.5 TO PN 400 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| Table | D, E, F, H |
| Types | Forged / Threaded / Screwed / Plate |
| Form | Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange, Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange. |
| Flanges Marking | All Flanges are marked as follows: Grade, Standard, Thickness, Heat No. (Or according to the customer’s request.) |
Available Variations in Titanium Grade 1 Flanges
Slip On Flanges
Titanium Gr 1 Slip On Flange
Weld Neck Flange
Titanium Gr 7 Weld Neck Flange
Blind Flange
Titanium Grade 1 Blind Flange
Socket Weld Flange
Titanium Gr 9 Socket Weld Flange
Ring Type Joint Flange
Titanium Gr 1 Ring Type Joint Flange
Threaded Flange
Titanium Gr 23 Threaded Flange
Forged Flange
Titanium Gr 1 Forged Flange
Threaded Flange
Titanium Grade 1 Lap Joint Flange
Spectacle Blind Flange
Titanium Gr 7 Spectacle Blind Flange
ASME SB381 Titanium Grade 1 Flange Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 1 | 3.7025 | R50250 |
| Titanium Gr 7 | 3.7235 | R52400 |
| Titanium Gr 9 | 3.7195 | R56320 |
| Titanium Gr 23 | 3.7165 | R56401 |
Chemical Composition of Titanium Gr 7 Flanges
| Grade | C | N | O | H | Ti | Fe |
| Titanium Gr 1 | .08 max | .03 max | .18 max | .015 max | bal | .20 max |
| Titanium Gr 7 | .08 max | .03 max | .25 max | .015 max | bal | .30 max |
| Titanium Gr 9 | .08 max | .03 max | .15 max | .015 max | - | .25 max |
| Titanium Gr 23 | 0.08 | 0.03 | 0.13 | 0.0125 | balance | - |
Mechanical Properties of Titanium Grade 9 Flange
| Grade | Tensile Strength, min | Yield Strength (0.2% Offset) | Elongation 2 in. or 50 mm | |||||
| min | max | |||||||
| Ksi | (Mpa) | Ksi | (Mpa) | Ksi | (Mpa) | gage length min % | ||
| Grade 1 | 35 | (240) | 25 | (170) | 45 | (310) | 24 | |
| Grade 7 | 50 | (345) | 40 | (275) | 65 | (450) | 20 | |
| Grade 9 | 90 | (620) | 70 | (483) | 45 | … | 15 | |
| Grade 23 | 120 | (828) | 110 | (759) | … | … | 10 | |
Other Types Of Titanium Gr 23 Flanges
- Titanium Grade 1 SORF Flange
- Grade 1 Titanium Welding Neck Flange
- ASME SB381 Titanium Gr 9 Flange
- Titanium Grade 7 Long Weld Neck Flanges
- WNR 3.7165 Industrial Flanges
- Titanium Grade 1 WNFF Flange
- ASTM B381 Ti Alloy Gr 23 BLRF Flange
- Titanium 3.7235 Spectacle Blind Flange
- Titanium Alloy Gr 23 Expander Flange
- Titanium Grade 9 Lapped Joint Flange
- Titanium Gr 1 Lap Joint Flange
- Titanium Alloy Gr 7 WNRTJ Flange
- Titanium Alloy Gr 7 Spades Ring Flanges
- Titanium 3.7195 Pipe Flanges
- UNS R50250 Square Flange
- ASTM B381 Titanium Grade 23 Reducing Flange
- 3.7025 Tongue & Groove Flange
- Grade 23 Titanium Threaded Flange
- Grade 9 Titanium Orifice Flange
- Titanium Grade 7 Long Weld Neck Flange
- Titanium Gr 7 Nipoflange
- ASME SB 381 Titanium Gr 9 Screwed Flanges
- Titanium Grade 1 Raised Face Flange
- Grade 9 Titanium Flat Face Flange
- Grade 9 Titanium Socket Welding Flange
- UNS R56320 Spades Ring Spacers Flanges
- Gr 1 Titanium Alloy Flat Face Flange Stock
- ASME B16.5 Titanium Alloy Gr 23 Flanges
- Ti Alloy Gr 9 Male & Female Flanges
- Titanium Grade 1 Flange Manufacturer in India
- Titanium R52400 SOFF Flanges
- Titanium 3.7025 PN 10 Flange
- 3.7235 Loose Flanges
- UNS R56401 High Hub Blinds Flanges
- Titanium Grade 1 Nipo Flanges
- ASME SB381 Titanium Gr 9 BLRF Flanges
- ASME SB381 Ti Alloy Gr 1 Puddle Flanges
- Titanium Gr 23 RTJF Flanges
- Titanium Grade 9 Flanges Suppliers
- Titanium Grade 23 Plate Flange
Titanium Grade 1 Flanges Industrial Application
-
-
Power Plant Generation
-
Marine Industry
-
Petrochemical Industry
-
Chemical Industry
-
Aerospace Industry
-
Sugar Industry
Titanium Gr 7 Flanges Price Details
Prices for Titanium Gr 9 Flanges Products are very affordable. Please click on the request a quote button or Click Here to request the updated price list and ready stock information along with your requirement. Bhansali Enterprise Titanium Gr 23 maintains a stock of all standard items and can export them at the best price ASME SB381 Titanium Alloy Gr 1 WNRF Flanges, Slip On Flanges, Weld Neck Flanges, Blind Flanges, SWRF Flanges, RTJ Flanges, SORF Flanges, BLRF Flanges etc.
