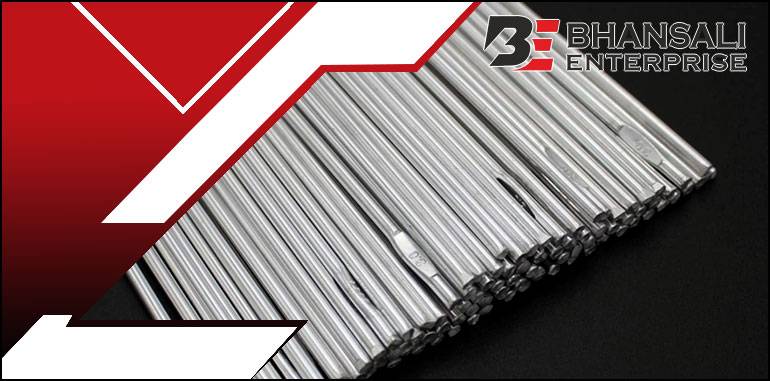

Inconel 800, 825 Filler Wires
Incoloy 800 and 825 filler wires are welding consumables designed specifically for joining and welding Incoloy 800 and Incoloy 825 base metals. Both alloys are part of the Incoloy family and are nickel-iron-chromium superalloys known for their excellent high-temperature strength, corrosion resistance, and resistance to stress-corrosion cracking.
Specifications Of Inconel 800 Filler Wires
| Size Range | 0.60 mm to 1.60 mm (0.025” to 0.062”) |
| Diameter | 1/16" (1.6 mm) |
| Thickness | 1.6-3.2mm |
| Materials | Inconel / Incoloy |
| Product Type | Filler Wire |
Available Variations in Inconel 800H Filler Wires
Tig Filler Wire
Mig Filler Wire
Welding Filler Wire
Incoloy 800H Filler Wires Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
| Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
| Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | - | X8NiCrAlTi32-21 | XH32T |
| Incoloy 825 | 2.4858 | N08825 | NCF 825 | NA 16 | ЭП703 | NFE30C20DUM | NiCr21Mo | XH38BT |
Chemical Composition of Inconel 825 Filler Wires
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| 800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| 800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60ᴬ | 0.15 – 0.60ᴬ |
| Incoloy 825 | 0.05 max | 1.00 max | 0.5 max | 0.03 max | 1.50 – 3.00 | 22.00 min | 38.00 – 46.00 | 19.50 – 23.50 | 0.02 max | 0.06 – 1.20 |
Mechanical Properties of Incoloy 800HT Filler Wires
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 800 / 800H / 800HT | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
| 825 | 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30 % |
Other Types Of Nickel Alloy 825 Filler Wire
- Inconel 825 Filler Wire
- Incoloy 825 Filler Wire Supplier
- Incoloy Alloy 800 Filler Wire
- 800 Incoloy Industrial Filler Wires
- Grade 825 Incoloy Filler Wire
- Incoloy Alloy 800 Filler Wire
- Alloy 825 Filler Wire
- Nickel Alloy 825 Filler Wires Manufacturer
- Alloy 800 Filler Rod
- Incoloy Alloy 800 Mig Filler Wire
- Alloy 825 TIG Filler Wire
- Incoloy 1.4876 Filler Wire
- Alloy 800 Filler Wire Supplier
- Incoloy 800H Mig Filler Rod
- UNS N08800 Filler Wire
- Inconel 800HT Mig Welding Filler Wire
- Incoloy 825 Welding Filler Wire
- Incoloy N08810 Filler Wire
- Incoloy 825 Tig Welding Filler Wire
- Inconel 800H Welding Filler Wire
- Incoloy 800 Filler Wires
- Incoloy Alloy 825 Welding Filler Rod
- Alloy 800 Filler Welding Wire
- Nickel Alloy 825 Welding Filler Wires
- Incoloy Alloy 800 Filler Mig Wire
- 1.4958 Filler Wire
- Inconel 1.4859 Filler Wire
- Filler Wire Incoloy 800
- Alloy 825 Welding Filler Rods
- Inconel 800 Tig Filler Wire
- Inconel 825 TIG Filler Rod
Incoloy Alloy 800 Filler Wires Industrial Application
Incoloy 800 and 825 filler wires find extensive application in various industries, including chemical processing, power generation, and marine environments. Their high-temperature strength and corrosion resistance make them ideal for components exposed to aggressive chemical environments. In chemical processing, they are commonly used in heat exchangers, reactors, and piping systems handling corrosive chemicals and acids. In power generation, Incoloy 800 and 825 filler wires are employed in fossil fuel-fired and nuclear power plants, where resistance to high-temperature and corrosive environments is crucial. In marine environments, they are used in seawater cooling systems, offshore platforms, and marine equipment, where resistance to seawater and chloride-induced corrosion is essential.
-
-
Power Plant Generation
-
Marine Industry
-
Petrochemical Industry
-
Chemical Industry
-
Aerospace Industry
-
Sugar Industry
Alloy 825 Filler Wires Price Details
Prices for Inconel 800 Filler Wire Products are very affordable. Please click on the request a quote button or Click Here to request the updated price list and ready stock information along with your requirement. Bhansali Enterprise Incoloy 800H maintains a stock of all standard items and can export them at the best price Inconel 825 Filler Wires, Tig Filler Wire, Mig Filler Wires, Welding Filler Wire etc.
