Inconel X750 Flanges are a type of high-performance alloy flanges that are primarily composed of nickel and chromium, with additional elements such as titanium, aluminum, and niobium, providing exceptional strength, corrosion resistance, and thermal stability. These flanges are part of the Inconel X750 family, which is known for its outstanding mechanical properties at elevated temperatures, making it suitable for various demanding applications.

One of the key features of Inconel X750 Flanges is their excellent corrosion resistance. The high nickel content in the alloy enhances its resistance to a wide range of corrosive environments, including acidic, alkaline, and oxidizing environments. Additionally, the inclusion of chromium provides superior resistance to oxidation and scaling at high temperatures, making these flanges ideal for use in high-temperature applications.

The chemical composition of Inconel X750 Flanges typically includes approximately 70% nickel, 15-17% chromium, 5-9% iron, 2.25-2.75% titanium, and small amounts of aluminum and niobium. These elements work in synergy to create a microstructure that can withstand extreme conditions and exhibit excellent mechanical properties.

Inconel X750 Flanges undergo a heat treatment process to further enhance their mechanical properties. The heat treatment typically involves a solution annealing process followed by precipitation hardening, which leads to the formation of fine precipitates that strengthen the alloy at elevated temperatures. This treatment ensures that the flanges retain their structural integrity and mechanical strength, even in demanding environments.

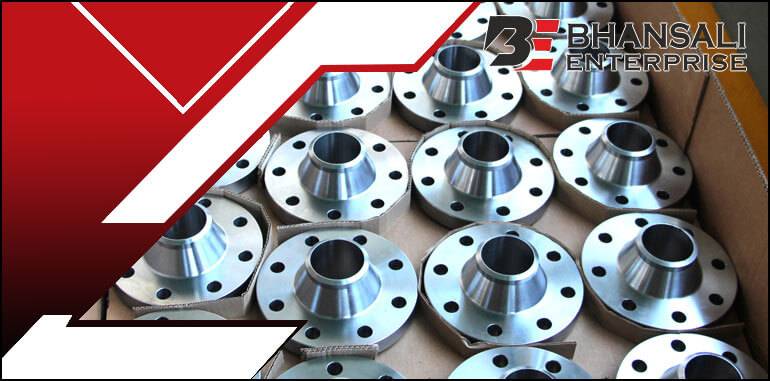

 Inconel X-750 Flanges

Due to their exceptional characteristics, Inconel X750 Flanges find applications in various industries. They are widely used in aerospace engineering for gas turbine engines, rocket motors, and thrust reversers due to their ability to withstand high temperatures and corrosive conditions. The oil and gas industry also utilizes these flanges in wellhead and downhole components exposed to harsh environments. Additionally, they are employed in chemical processing, nuclear reactors, and cryogenic applications where resistance to corrosion and extreme temperatures is crucial.

Bhansali Enterprises Specifications Of Inconel X-750 Flanges

Standard ASTM B564 / ASME SB564
Dimension ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Flanges Size 1/2" (15 NB) to 48" (1200NB) DN10~DN5000
Flange Face Type Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove
Pressure Class PN 2.5 TO PN 400
Pressure Rating ANSI Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
Pressure Calculation in DIN 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
Table D, E, F, H
Types Forged / Threaded / Screwed / Plate
Form Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange, Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange.
Flanges Marking All Flanges are marked as follows: Grade, Standard, Thickness, Heat No. (Or according to the customer’s request.)

LogoASME SB564 Inconel X-750 Flange Equivalent Grades

Shape
STANDARD WERKSTOFF NR. UNS
Inconel X-750 2.4669 N07750

LogoChemical Composition of Inconel X-750 Flanges

Shape
Grade Ni Cr Al C Mn Ti Cu Si S
Inconel X-750 70.0 min 14.0 - 17.0 0.40 - 1.0 .08 max 1.00 max 2.25 - 2.75 0.50 max .50 max .01 max

LogoMechanical Properties of Alloy X-750 Flange

Shape
Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Inconel X-750 1430°C 1267 MPa 868 MPa 25 %

Bhansali Enterprises Available Variations in Inconel X-750 Flanges

Inconel X-750 Slip On Flange

Slip On Flanges

Alloy X-750 Slip On Flange

Inconel X-750 Weld Neck Flanges

Weld Neck Flange

Inconel X-750 Weld Neck Flange

Inconel X-750 Blind Flange

Blind Flange

Inconel X-750 Blind Flange

Inconel X-750 Socket Weld Flange

Socket Weld Flange

Inconel X-750 Socket Weld Flange

Inconel X-750 Ring Type Joint Flange

Ring Type Joint Flange

Alloy X-750 Ring Type Joint Flange

Inconel X-750 Threaded Flange

Threaded Flange

Inconel X750 Threaded Flange

Inconel X-750 Forged Flange

Forged Flange

Inconel X 750 Forged Flange

Inconel X-750 Lap Joint Flange

Threaded Flange

Inconel X-750 Lap Joint Flange

Inconel X-750 Spectacle Blind Flange

Spectacle Blind Flange

Alloy X-750 Spectacle Blind Flange

Bhansali EnterprisesOther Types Of Inconel X-750 Flanges

  • Nickel Alloy X-750 Threaded Flange
  • Inconel X 750 WNFF Flange
  • ASTM B564 Alloy X-750 Reducing Flange
  • Inconel X-750 Lapped Joint Flange
  • UNS N07750 Square Flange
  • ASME SB564 Inconel Alloy X-750 Flange
  • 2.4669 Tongue & Groove Flange
  • Inconel Alloy X-750 Expander Flange
  • X-750 Inconel Lap Joint Flange
  • ASTM B564 Alloy X-750 BLRF Flange
  • X-750 Inconel Spades Ring Flanges
  • WNR 2.4669 Industrial Flanges
  • Alloy X 750 Long Weld Neck Flange
  • Inconel 2.4669 Spectacle Blind Flange
  • X 750 Inconel® Alloy Welding Neck Flange
  • X-750 Inconel Orifice Flange
  • Inconel X750 SORF Flange
  • Inconel X-750 WNRTJ Flange
  • Inconel 2.4669 Pipe Flanges
  • 2.4669 Loose Flanges
  • UNS N07750 High Hub Blinds Flanges
  • Alloy 2.4669 Loose Flanges
  • Inconel X-750 Raised Face Flange
  • Inconel® Alloy X-750 RTJF Flanges
  • Inconel 2.4669 PN 10 Flange
  • Inconel X 750 Nipo Flanges
  • Inconel X-750 Plate Flange
  • Inconel X750 SOFF Flanges
  • ASME SB564 Alloy X-750 BLRF Flanges
  • ASME SB564 Inconel X750 Puddle Flanges
  • Inconel® Alloy X-750 Socket Welding Flange
  • Alloy X-750 Male & Female Flanges
  • Nickel Alloy X 750 Nipoflange
  • UNS N07750 Spades Ring Spacers Flanges
  • X-750 Inconel Flat Face Flange Stock
  • ASME SB 564 Alloy X 750 Screwed Flanges
  • X-750 Inconel Alloy Flat Face Flange
  • ASME B16.5 Inconel X-750 Flanges

Bhansali EnterprisesInconel X-750 Flanges Technical Data

Bhansali EnterprisesInconel X-750 Flanges Industrial Application

Shape
about three shape 4
Shape
Shape
  • Oil & Gas Industry

  • Power Plant Generation

  • Marine Industry

  • Petrochemical Industry

  • Chemical Industry

  • Aerospace Industry

  • Sugar Industry

Bhansali EnterprisesInconel Alloy X-750 Flanges Price Details

Prices for Alloy X-750 Flanges Products are very affordable. Please click on the request a quote button or Click Here to request the updated price list and ready stock information along with your requirement. Bhansali Enterprise Inconel X 750 maintains a stock of all standard items and can export them at the best price ASME SB564 X 750 Inconel Alloy WNRF Flanges, Slip On Flanges, Weld Neck Flanges, Blind Flanges, SWRF Flanges, RTJ Flanges, SORF Flanges, BLRF Flanges etc.
