Monel K500 is a precipitation-hardened nickel-copper alloy known for its exceptional strength and corrosion resistance, especially in marine environments. Monel K500 filler wires are welding consumables specifically designed to join or repair components made from Monel K500 or similar alloys. These filler wires ensure strong and reliable welds, maintaining the alloy's superior corrosion resistance and mechanical properties.

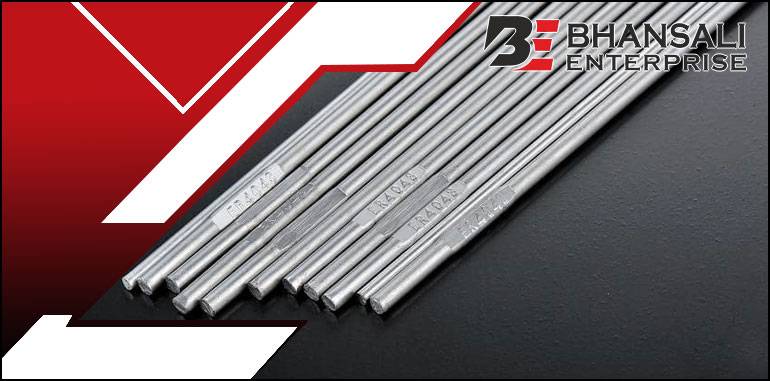

Monel Alloy K500 Filler Wires

Bhansali Enterprises Specifications Of Monel K500 Filler Wires

Size Range 0.60 mm to 1.60 mm (0.025” to 0.062”)
Diameter 1/16" (1.6 mm)
Thickness 1.6-3.2mm
Materials Monel
Product Type Filler Wire

LogoMonel K-500 Filler Wires Equivalent Grades

cta one shape 1
STANDARD WERKSTOFF NR. UNS
Monel K500 2.4375 N05500

LogoChemical Composition of Monel K500 Filler Wires

cta one shape 1
Grade C Mn Si S Cu Fe Ni
Monel K500 0.25 max 1.5 max 0.5 max 0.010 max 27.00 – 33.00 0.5 – 2 63.00 min

LogoMechanical Properties of Monel K-500 Filler Wires

cta one shape 1
Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Monel K500 8.44 g/cm3 1350 °C (2460 °F) Psi – 160000 , MPa – 1100 Psi – 115000 , MPa – 790 20 %

Bhansali EnterprisesMonel K500 Filler Wires Product Features

Bhansali Enterprises Available Variations in Monel K500 Filler Wires

Bhansali EnterprisesOther Types Of Nickel Alloy K500 Filler Wire

  • Monel K500 Filler Wire Supplier
  • K-500 Monel Industrial Filler Wires
  • Alloy K500 Filler Wire
  • Monel Alloy K500 Filler Wire
  • Monel K-500 Mig Welding Filler Wire
  • Alloy K500 Filler Wire Supplier
  • Monel K500 Mig Filler Rod
  • Nickel Alloy K500 Filler Wires Manufacturer
  • Monel 2.4375 Filler Wire
  • UNS N05500 Filler Wire
  • Monel Alloy K500 Mig Filler Wire
  • Monel K500 Filler Wire
  • Alloy K500 TIG Filler Wire
  • Alloy K500 Welding Filler Rods
  • Monel K500 TIG Filler Rod
  • Nickel Alloy K-500 Welding Filler Wires
  • Monel K500 Tig Welding Filler Wire
  • Alloy K500 Filler Welding Wire
  • Monel N05500 Filler Wire
  • Grade K500 Monel Filler Wire
  • Monel K500 Welding Filler Wire
  • Monel K500 Tig Filler Wire
  • Monel Alloy K500 Welding Filler Rod
  • Filler Wire Monel K500
  • Alloy K500 Filler Rod
  • Monel Alloy K-500 Filler Mig Wire

Bhansali EnterprisesMonel Alloy K500 Filler Wires Industrial Application

Monel K500 filler wires find various applications across industries. They are commonly used in marine and offshore equipment, such as pump shafts, propellers, and valves, where their strength and corrosion resistance are vital for extended service life in harsh seawater environments. Additionally, the aerospace industry utilizes these filler wires for manufacturing critical components that demand high strength and corrosion resistance. In chemical processing plants, Monel K500 filler wires are employed to fabricate equipment like pumps, valves, and heat exchangers, where resistance to acidic and alkaline solutions is essential.

Shape
about three shape 4
Shape
Shape
  • Oil & Gas Industry

  • Power Plant Generation

  • Marine Industry

  • Petrochemical Industry

  • Chemical Industry

  • Aerospace Industry

  • Sugar Industry

Bhansali EnterprisesAlloy K500 Filler Wires Price Details

Prices for Monel K500 Filler Wire Products are very affordable. Please click on the request a quote button or Click Here to request the updated price list and ready stock information along with your requirement. Bhansali Enterprise Monel K500 maintains a stock of all standard items and can export them at the best price Monel K500 Filler Wires, Tig Filler Wire, Mig Filler Wires, Welding Filler Wire etc.
