Monel K500 flanges are a type of industrial fittings that are manufactured using Monel K500, a high-strength nickel-copper alloy. These flanges are designed to connect pipes, valves, and other equipment in various piping systems, offering superior performance in corrosive and challenging environments.

One of the key features of Monel K500 Flanges is their exceptional corrosion resistance. The alloy contains a significant amount of nickel and copper, providing excellent resistance to corrosion by seawater, acids, alkalis, and other corrosive media. This makes Monel K500 flanges particularly suitable for applications in marine environments, chemical processing plants, and oil and gas industries.

The chemical composition of Monel K500 includes approximately 63% nickel, 30% copper, 2.5% aluminum, and small additions of titanium and other elements. The addition of aluminum and titanium to the alloy enhances its strength and hardness while maintaining good ductility and toughness.

In terms of heat treatment, Monel K500 flanges can be solution annealed to improve their mechanical properties. Solution annealing involves heating the material to a specific temperature followed by quenching in water or another cooling medium. This process helps to dissolve any precipitates that may have formed during previous manufacturing or processing steps, ensuring the material maintains its optimal performance characteristics.

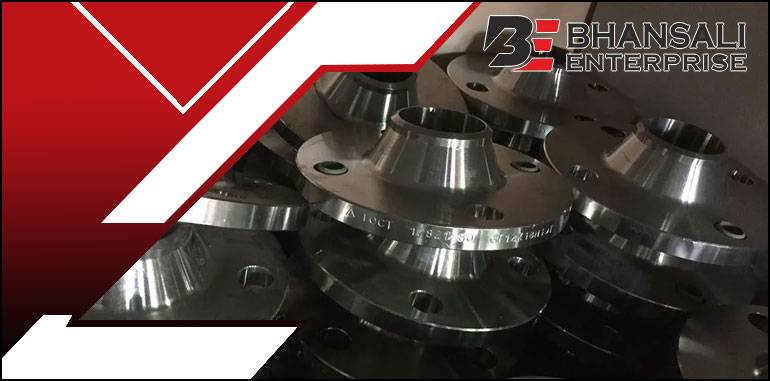

 Monel K500 Flanges

The applications of Monel K500 flanges are diverse due to their unique properties. They are commonly used in seawater and marine applications, such as seawater pumps, valves, and offshore drilling equipment, where their corrosion resistance is vital for prolonged service life. Additionally, the alloy's resistance to sour gas environments makes it suitable for applications in the oil and gas industry. Monel K500 flanges also find application in chemical processing, where they can withstand the corrosive effects of various acids and alkalis, ensuring the safety and reliability of chemical handling systems.

Bhansali Enterprises Specifications Of Monel K500 Flanges

Standard ASTM B564 / ASME SB564
Dimension ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Flanges Size 1/2" (15 NB) to 48" (1200NB) DN10~DN5000
Flange Face Type Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove
Pressure Class PN 2.5 TO PN 400
Pressure Rating ANSI Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
Pressure Calculation in DIN 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
Table D, E, F, H
Types Forged / Threaded / Screwed / Plate
Form Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange, Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange.
Flanges Marking All Flanges are marked as follows: Grade, Standard, Thickness, Heat No. (Or according to the customer’s request.)

LogoASME SB564 Monel K500 Flange Equivalent Grades

Shape
STANDARD WERKSTOFF NR. UNS
Monel K500 2.4375 N05500

LogoChemical Composition of Monel K500 Flanges

Shape
Grade C Mn Si S Cu Fe Ni
Monel K500 0.25 max 1.5 max 0.5 max 0.010 max 27.00 – 33.00 0.5 – 2 63.00 min

LogoMechanical Properties of Alloy K500 Flange

Shape
Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Monel K500 8.44 g/cm3 1350 °C (2460 °F) Psi – 160000 , MPa – 1100 Psi – 115000 , MPa – 790 20 %

Bhansali Enterprises Available Variations in Monel K500 Flanges

Monel K500 Slip On Flange

Slip On Flanges

Alloy K500 Slip On Flange

Monel K500 Weld Neck Flanges

Weld Neck Flange

Monel K500 Weld Neck Flange

Monel K500 Blind Flange

Blind Flange

Monel K500 Blind Flange

Monel K500 Socket Weld Flanges

Socket Weld Flange

Monel K500 Socket Weld Flanges

Monel K500 Ring Type Joint Flange

Ring Type Joint Flange

Alloy K500 Ring Type Joint Flange

Monel K500 Threaded Flange

Threaded Flange

Monel K500 Threaded Flange

Monel K500 Forged Flange

Forged Flange

Monel K500 Forged Flange

Monel K500 Lap Joint Flanges

Threaded Flange

Monel K500 Lap Joint Flanges

Monel K500 Spectacle Blind Flange

Spectacle Blind Flange

Alloy K500 Spectacle Blind Flange

Bhansali EnterprisesOther Types Of Monel K500 Flanges

  • ASME SB564 Monel Alloy K500 Flange
  • K500 Monel Orifice Flange
  • K500 Monel Lap Joint Flange
  • ASTM B564 Alloy K500 BLRF Flange
  • Nickel Alloy K500 Threaded Flange
  • Monel Alloy K500 Expander Flange
  • ASTM B564 Alloy K500 Reducing Flange
  • Monel 2.4375 Spectacle Blind Flange
  • 2.4375 Tongue & Groove Flange
  • Monel K500 Industrial Flanges
  • Monel K500 WNFF Flange
  • Alloy K500 Long Weld Neck Flange
  • Monel K500 WNRTJ Flange
  • UNS N05500 Square Flange
  • Monel K500 Lapped Joint Flange
  • Monel K500 Flanges Pressure Rating
  • K500 Monel Spades Ring Flanges
  • Monel K500 SORF Flange
  • Monel 2.4375 Pipe Flanges
  • K500 Monel® Alloy Welding Neck Flange
  • Monel K500 Flanges Manufacturer
  • Monel K500 Flanges Price
  • K500 Monel Alloy Flat Face Flange
  • ASME SB 564 Alloy K500 Screwed Flanges
  • Alloy K500 Blind Flange
  • Alloy K500 Male & Female Flanges
  • ASME SB564 Alloy K500 BLRF Flanges
  • ASME SB564 Monel K500 Puddle Flanges
  • Nickel Alloy K500 Nipoflange
  • 2.4375 Loose Flanges
  • Monel® Alloy K500 RTJF Flanges
  • Monel® Alloy K500 Socket Welding Flange
  • Monel 2.4375 PN 10 Flange
  • Monel K500 SOFF Flanges
  • Monel K500 Raised Face Flange
  • Monel K500 Nipo Flanges
  • ASME B16.5 Monel K500 Flanges
  • UNS N05500 Spades Ring Spacers Flanges
  • Monel K500 Plate Flange
  • K500 Monel Flat Face Flange Stock
  • UNS N05500 High Hub Blinds Flanges
  • Alloy 2.4375 Loose Flanges

Bhansali EnterprisesMonel K500 Flanges Technical Data

Bhansali EnterprisesMonel K500 Flanges Industrial Application

Shape
about three shape 4
Shape
Shape
  • Oil & Gas Industry

  • Power Plant Generation

  • Marine Industry

  • Petrochemical Industry

  • Chemical Industry

  • Aerospace Industry

  • Sugar Industry

Bhansali EnterprisesMonel Alloy K500 Flanges Price Details

Prices for Alloy K500 Flanges Products are very affordable. Please click on the request a quote button or Click Here to request the updated price list and ready stock information along with your requirement. Bhansali Enterprise Monel K500 maintains a stock of all standard items and can export them at the best price ASME SB564 K500 Monel Alloy WNRF Flanges, Slip On Flanges, Weld Neck Flanges, Blind Flanges, SWRF Flanges, RTJ Flanges, SORF Flanges, BLRF Flanges etc.
