Stainless Steel 13-8Mo, also known as 13-8 PH or 13-8 Stainless, is precipitation-hardening stainless steel that offers a unique combination of high strength, excellent corrosion resistance, and good toughness. The chemical composition typically includes about 12.25-13.25% chromium, 7.5-8.5% nickel, 1.0-2.0% molybdenum, 0.9-1.35% aluminum, and small amounts of carbon, manganese, phosphorus, sulfur, silicon, and copper. This alloy is designed to provide outstanding performance in both high-strength and tough applications.

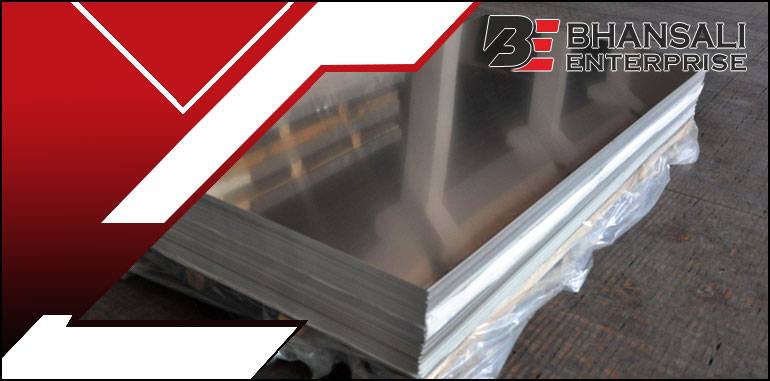

Stainless Steel 13-8MO Plates

Bhansali Enterprises Specifications Of SS 13-8MO Plates

Standards ASTM A240 / ASME SA240
Dimensions ASTM, ASME, and API
Sheets Plates Width 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Sheets Plates Thickness 4mm-100mm
Sheets Plates Length 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface Finish No.1, 2B, BA, 8K Mirror, Hairline, satin (Met with Plastic Coated) Embossed, brush, No.4, HL, matt, pvc etc.
Value added services Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc.
Hardness Half Hard, Quarter Hard, Soft, Hard, Spring Hard
Form Coils, Foils, Rolls, Strip, Flats, Blank (Circle), Ring (Flange)

Logo13-8MO Stainless Steel Sheets Equivalent Grades

cta one shape 1
STANDARD WERKSTOFF NR. UNS AMS SAE
SS 13-8MO 1.4534 S13800 5864/ AMS 5629 13-8

LogoChemical Composition of Stainless Steel PH 13/8MO Coils

cta one shape 1
Weight% C P Si Ni Al Fe Mn S Cr Mo N
13-8 Mo 0.05 max 0.010 max 0.10 max 7.5-8.5 0.90-1.35 Bal 0.10 max 0.008 max 12.25-13.25 2.0-2.5 0.01 max

LogoMechanical Properties of SS 13-8MO Sheet

cta one shape 1
Material Condition
Ultimate Tensile Strength (ksi) 0.2 % Yield Strength (ksi) Elongation % in 2D % Reduction of Area Rockwell C Hardness
Alloy 13-8
Sheet AMS 5864
Cond A - - - - 38 max
Alloy 13-8
Sheet AMS 5864
H950 220 205 10 45 45
Alloy 13-8
Sheet AMS 5864
H1000 205 190 10 50 43
Alloy 13-8
Sheet AMS 5864
H1025 185 175 11 50 41
Alloy 13-8
Sheet AMS 5864
H1050 175 165 12 50 40
Alloy 13-8
Sheet AMS 5864
H1100 150 135 14 50 34
Alloy 13-8
Sheet AMS 5864
H1150 135 90 14 50 30

Bhansali EnterprisesAlloy 13-8 Plates Product Features

Bhansali Enterprises Available Variations in Stainless Steel PH 13-8 Mo Sheets

Alloy 13-8 Sheets

Sheets

Alloy 13-8 Sheets

Stainless Steel PH 13/8MO Plates

Plates

SS PH 13/8MO Plates

Stainless Steel PH 13-8 Mo Coils

Coils

SS PH 13-8 Mo Coils

Stainless Steel 13-8MO Strips

Strips

SS 13-8MO Strips

Stainless Steel 13-8PH Foils

Foils

Stainless Steel 13-8PH Foils

Alloy PH 13-8 Mo Circle

Circle

Alloy 13-8MO Circle

Bhansali EnterprisesOther Types Of Stainless Steel 13-8MO Sheet

  • 13-8MO Stainless Steel Coil
  • 13-8PH Stainless Steel Plates
  • Alloy 13-8 Coils
  • SS PH 13-8Mo Plate Manufacturer
  • No.8 Mirror Finish Stainless Steel PH 13-8Mo Plates
  • 13-8MO Stainless Steel Sheets
  • Austenitic Stainless Steel 13-8MO Plate
  • Stainless Steel 13-8MO Coils Supplier
  • Stainless Steel 13-8MO Sheets
  • 13-8MO Stainless Steel Chequered Plate
  • Stainless Steel 13-8MO Plate
  • 13-8MO Stainless Steel HR Coils
  • UNS S13800 Sheets
  • SS 1.4534 Coils
  • SS PH 13/8MO Sheets
  • 13-8MO Stainless Steel Perforated Sheet
  • 13-8MO Stainless Steel Industrial Coils
  • Alloy 13-8MO Shim Sheets
  • Stainless Steel 13-8MO Coils
  • ASTM A240 13-8MO Stainless Steel Sheets
  • Alloy 13-8 Slit Coils
  • Stainless Steel S13800 Hot Rolled Plate
  • Stainless Steel PH 13-8Mo 2B Finish Plate
  • 13-8MO Stainless Steel 2B Finish Plate
  • SS PH 13-8 Mo Cold Rolled Coils
  • 13-8MO Stainless Steel BA Finish Coils
  • Stainless Steel 13-8MO Rings
  • Stainless Steel 1.4534 Sheets
  • 13-8MO Stainless Steel No 4 Mirror Finish Sheets
  • SS 13-8MO Strips
  • Stainless Steel PH 13-8Mo Polish Sheets
  • Stainless Steel 13-8MO Rolls
  • SS PH 13/8MO CR Plate
  • Stainless Steel 13-8PH 2D Finish Plates
  • SS 13-8PH Shims
  • 13-8MO Stainless Steel Circle
  • 13-8MO Stainless Steel Shim Coils
  • ASME SA240 13-8MO SS Plate
  • PH 13-8 Mo Stainless Steel Foils
  • Stainless Steel 13-8MO Embossed Sheet

Bhansali EnterprisesStainless Steel 13-8 Mo Sheets Plates Coils Technical Data

Bhansali EnterprisesSS 13-8MO Sheets Industrial Application

Stainless Steel 13-8Mo Sheet is used in a variety of applications across different industries. In the aerospace sector, it finds application in components such as aircraft landing gear, structural parts, and fittings, where its high strength-to-weight ratio and corrosion resistance are crucial. It is also utilized in the oil and gas industry for offshore components and equipment subjected to harsh environments. Additionally, Stainless Steel 13-8Mo Sheet is employed in high-performance machinery, such as shafts and gears, due to its excellent mechanical properties and corrosion resistance.

Shape
about three shape 4
Shape
Shape
  • Oil & Gas Industry

  • Power Plant Generation

  • Marine Industry

  • Petrochemical Industry

  • Chemical Industry

  • Aerospace Industry

  • Sugar Industry

Bhansali EnterprisesStainless Steel 13-8MO Plate Price Details

Prices for SS Sheets Plate & Coils Products are very affordable. Please click on the request a quote button or Click Here to request the updated price list and ready stock information along with your requirement. Bhansali Enterprise SS 13-8MO maintains a stock of all standard items and can export them at the best price 13-8MO Stainless Steel Chequered Plate, Perforated Sheet, Shim Sheets, Slit Coils etc.
