Stainless Steel 904L is a high-alloy austenitic stainless steel known for its exceptional corrosion resistance, especially in aggressive environments. The chemical composition typically includes about 19-23% chromium, 23-28% nickel, 4-5% molybdenum, and small amounts of copper, carbon, manganese, phosphorus, sulfur, silicon, and nitrogen. The high nickel and molybdenum content contribute to its superior resistance to a wide range of corrosive media, including sulfuric acid, phosphoric acid, and chloride solutions

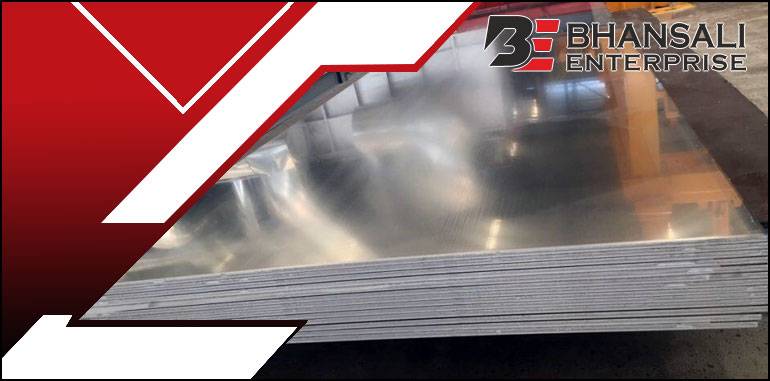

Stainless Steel 904L Plates

Bhansali Enterprises Specifications Of SS 904L Plates

Standards ASTM A240 / ASME SA240
Dimensions ASTM, ASME, and API
Sheets Plates Width 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Sheets Plates Thickness 4mm-100mm
Sheets Plates Length 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface Finish No.1, 2B, BA, 8K Mirror, Hairline, satin (Met with Plastic Coated) Embossed, brush, No.4, HL, matt, pvc etc.
Value added services Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc.
Hardness Half Hard, Quarter Hard, Soft, Hard, Spring Hard
Form Coils, Foils, Rolls, Strip, Flats, Blank (Circle), Ring (Flange)

Logo904L Stainless Steel Sheets Equivalent Grades

cta one shape 1
STANDARD WERKSTOFF NR. UNS JIS BS KS AFNOR EN
SS 904L 1.4539 N08904 SUS 904L 904S13 STS 317J5L Z2 NCDU 25-20 X1NiCrMoCu25-20-5

LogoChemical Composition of Stainless Steel 904L Coils

cta one shape 1
Grade C Mn Si P S Cr Mo Ni Cu
SS 904L 0.020 max 2.0 max 1.00 max 0.040 max 0.030 max 19.00 – 23.00 4.00 – 5.00 23.00 – 28.00 1.00 – 2.00

LogoMechanical Properties of SS 904L Sheet

cta one shape 1
Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
7.95 g/cm3 1350 °C (2460 °F) Psi – 71000 , MPa – 490 Psi – 32000 , MPa – 220 35 %

Bhansali EnterprisesStainless Steel 904L Plates Product Features

Bhansali Enterprises Available Variations in Stainless Steel 904L Sheets

Stainless Steel 904L Sheets

Sheets

SS 904L Sheets

Stainless Steel 904L Plates

Plates

SS 904L Plates

Stainless Steel 904L Coils

Coils

SS 904L Coils

Stainless Steel 904L Strips

Strips

SS 904L Strips

Stainless Steel 904L Foils

Foils

SS 904L Foils

Stainless Steel 904L Circle

Circle

SS 904L Circle

Bhansali EnterprisesOther Types Of Stainless Steel 904L Sheet

  • 904L Stainless Steel Plates
  • SS 904L Coils
  • SS 904L Plate Manufacturer
  • SS 904L CR Plate
  • 904L Stainless Steel Sheets
  • Austenitic Stainless Steel 904L Plate
  • Stainless Steel 904L Coils Supplier
  • 904L Stainless Steel HR Coils
  • AISI 904L Sheets
  • UNS N08904 Sheets
  • SS 1.4539 Coils
  • SS 904L Sheets
  • 904L Stainless Steel Perforated Sheet
  • 904L Stainless Steel Industrial Coils
  • SS 904L Shim Sheets
  • Stainless Steel 904L Coils
  • ASTM A240 TP904L Stainless Steel Sheets
  • 904L Stainless Steel Coil
  • Stainless Steel 904L Sheets
  • 904L Stainless Steel Chequered Plate
  • Stainless Steel 904L Plate
  • No.8 Mirror Finish Stainless Steel 904L Plates
  • SUS 904L Sheets
  • 904L Stainless Steel No 4 Mirror Finish Sheets
  • Stainless Steel 904L Cold Rolled Coils
  • Stainless Steel 904L Rings
  • 904L Stainless Steel 2B Finish Plate
  • 904L Plate
  • 904L Stainless Steel Shim Coils
  • Stainless Steel 904L Polish Sheets
  • Stainless Steel N08904 Hot Rolled Plate
  • ASME SA240 TP904L SS Plate
  • Stainless Steel 904L Rolls
  • Stainless Steel 904L Embossed Sheet
  • Stainless Steel 904L Slit Coils
  • 904L Stainless Steel Foils
  • SS 904L Strips
  • 904L Stainless Steel Circle
  • Stainless Steel 904L 2D Finish Plates
  • Stainless Steel 1.4539 Sheets
  • Stainless Steel 904L 2B Finish Plate
  • SS 904L Shims
  • 904L Stainless Steel BA Finish Coils
  • 1.4539 Plates

Bhansali EnterprisesStainless Steel 904L Sheets Plates Coils Technical Data

Bhansali EnterprisesSS 904L Sheets Industrial Application

The applications of Stainless Steel 904L Plates are vast, particularly in aggressive environments where conventional stainless steel might fail. It is widely used in chemical and petrochemical processing plants, where it handles corrosive acids, such as sulfuric acid and phosphoric acid. Its resistance to chloride-induced pitting and crevice corrosion makes it ideal for seawater cooling systems, desalination plants, and marine applications. In addition, it finds use in the pharmaceutical industry for the storage and handling of various chemicals and in the production of surgical instruments and medical equipment.
Due to its superior corrosion resistance, Stainless Steel 904L Sheets are often used as a replacement for standard austenitic stainless steels like 316L and 317L in critical applications. Its ability to withstand extreme corrosive conditions, combined with its excellent formability and weldability, makes it a highly sought-after material in various industries where resistance to corrosion is of utmost importance.

Shape
about three shape 4
Shape
Shape
  • Oil & Gas Industry

  • Power Plant Generation

  • Marine Industry

  • Petrochemical Industry

  • Chemical Industry

  • Aerospace Industry

  • Sugar Industry

Bhansali EnterprisesStainless Steel 904L Plate Price Details

Prices for SS Sheets Plate & Coils Products are very affordable. Please click on the request a quote button or Click Here to request the updated price list and ready stock information along with your requirement. Bhansali Enterprise SS 904L maintains a stock of all standard items and can export them at the best price 904L Stainless Steel Chequered Plate, Perforated Sheet, Shim Sheets, Slit Coils etc.
