Stainless Steel 316, 316L, and 316Ti filler wires are welding consumables used to join and weld Stainless Steel 316, 316L, and 316Ti base metals. Each filler wire grade offers specific features and properties suited for various welding applications.

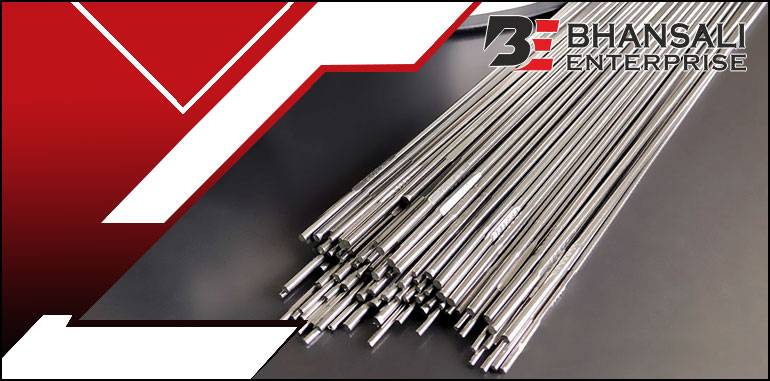

 Stainless Steel 316 Filler Wires

Bhansali Enterprises Specifications Of SS 316TI Filler Wires

Standard ASTM A580, ASME SA580
Size Range 0.60 mm to 1.60 mm (0.025” to 0.062”)
Finish Bright Finish, Matte Finish, Semi Bright/Matte Finish.
Diameter 1/16" (1.6 mm)
Materials Stainless Steel
Product Type Filler Wire

Logo316L Stainless Steel Filler Wires Equivalent Grades

cta one shape 1
STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 316 1.4401 / 1.4436 S31600 SUS 316 316S31 / 316S33 Z7CND17-11-02 X5CrNiMo17-12-2 / X3CrNiMo17-13-3
SS 316L 1.4404 / 1.4435 S31603 SUS 316L 316S11 / 316S13 03Ch17N14M3 / 03Ch17N14M2 Z3CND17-11-02 / Z3CND18-14-03 X2CrNiMo17-12-2 / X2CrNiMo18-14-3
SS 316TI 1.4571 S31635 SUS 316Ti 320S31 08Ch17N13M2T Z6CNDT17-123 X6CrNiMoTi17-12-2

LogoChemical Composition of Stainless Steel 316 Filler Wires

cta one shape 1
Grade C Mn Si P S Cr Mo Ni Fe
SS 316 0.08 max 2.0 max 1.0 max 0.045 max 0.030 max 16.00 – 18.00 2.00 – 3.00 11.00 – 14.00 67.845 min
SS 316L 0.035 max 2.0 max 1.0 max 0.045 max 0.030 max 16.00 – 18.00 2.00 – 3.00 10.00 – 14.00 68.89 min
SS 316Ti 0.08 max 2.0 max 0.75 max 0.045 max 0.030 max 16.00 – 18.00 2.00 – 3.00 10.00 – 14.00 68.395 min

LogoMechanical Properties of SS 316L Filler Wires

cta one shape 1
Grades Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
SS 316 / 316L 8.0 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %
SS 316TI 8.0 g/cm3 1399 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %

Bhansali EnterprisesStainless Steel 316TI Filler Wires Product Features

Bhansali Enterprises Available Variations in Stainless Steel 316 Filler Wires

Stainless Steel 316L Tig Filler Wire

Tig Filler Wire

Stainless Steel 316TI Mig Filler Wire

Mig Filler Wire

Stainless Steel 316 Welding Filler Wire

Welding Filler Wire

Bhansali EnterprisesOther Types Of Stainless Steel 316L Filler Wire

  • 316TI Stainless Steel Filler Wire
  • Stainless Steel 316 Filler Wire Supplier
  • 316TI Stainless Steel Filler Rod
  • 316 Stainless Steel Mig Filler Wire
  • SS 316L Mig Filler Rod
  • Stainless Steel S31635 Filler Wire
  • SS 316L Filler Wires Manufacturer
  • UNS S31600 Filler Wire
  • 316 Stainless Steel Mig Welding Filler Wire
  • 316L Stainless Steel Industrial Filler Wires
  • Grade 316 SS Filler Wire
  • Stainless Steel 316L TIG Filler Wire
  • SS 1.4401 Filler Wire
  • SS 316L Filler Wire
  • Stainless Steel S31603 Filler Wire
  • 316 Stainless Steel Tig Welding Filler Wire
  • 316L Stainless Steel Welding Filler Wire
  • SS 316TI Filler Wires
  • SS 316L Welding Filler Rod
  • SS 316 Filler Welding Wire
  • Stainless Steel 1.4571 Filler Wire
  • Stainless Steel 316L Welding Filler Wires
  • 316 Stainless Steel Welding Filler Rods
  • SS 316TI Filler Mig Wire
  • 1.4404 Filler Wire
  • SS 316TI Tig Filler Wire
  • Filler Wire Stainless Steel 316TI
  • Stainless Steel 316L TIG Filler Rod

Bhansali EnterprisesSS 316TI Filler Wires Industrial Application

Stainless Steel 316, 316L, and 316Ti filler wires are widely used in various welding applications, especially where corrosion resistance is critical. They find applications in chemical processing, marine equipment, and petrochemical industries for components like tanks, piping systems, and heat exchangers. The filler wires are also employed in the fabrication of surgical instruments, pharmaceutical equipment, and food processing machinery due to their hygienic properties and corrosion resistance. Stainless Steel 316L and 316Ti filler wires are specifically chosen for applications that require improved weldability and resistance to sensitization and intergranular corrosion, such as in high-temperature environments and heavy gauge welding.

Shape
about three shape 4
Shape
Shape
  • Oil & Gas Industry

  • Power Plant Generation

  • Marine Industry

  • Petrochemical Industry

  • Chemical Industry

  • Aerospace Industry

  • Sugar Industry

Bhansali EnterprisesStainless Steel 316 Filler Wires Price Details

Prices for SS 316 Filler Wire Products are very affordable. Please click on the request a quote button or Click Here to request the updated price list and ready stock information along with your requirement. Bhansali Enterprise SS 316L maintains a stock of all standard items and can export them at the best price 316TI Stainless Steel Filler Wires, Tig Filler Wire, Mig Filler Wires, Welding Filler Wire etc.
