Shape

Inconel AL-6XN Wires are a type of high-performance alloy known for their exceptional corrosion resistance and mechanical properties. This material is a nickel-based superalloy that also contains high levels of molybdenum and nitrogen, making it highly resistant to a wide range of aggressive environments, including acids, chloride solutions, and seawater.

One of the key features of Inconel AL-6XN Wires is their remarkable corrosion resistance. They can withstand both pitting and crevice corrosion, which are common challenges in harsh conditions. This makes them suitable for use in various industries, including marine, chemical processing, and petrochemical.

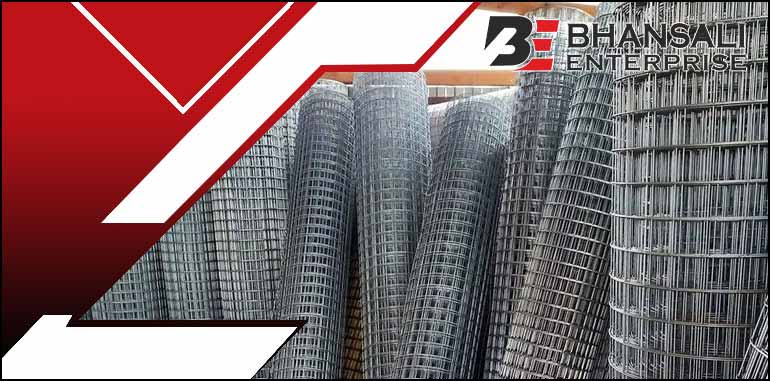

Inconel AL-6XN Wires

The chemical composition of Inconel AL-6XN wires typically includes around 24-27% nickel, 6-7% molybdenum, and 20-22% chromium, along with 0.18-0.25% nitrogen. These elements contribute to the alloy's unique combination of properties, providing excellent strength and toughness while maintaining outstanding corrosion resistance.

Machining Inconel AL-6XN wires can be challenging due to their high strength and work-hardening tendency. Specialized machining techniques, such as slow speeds, heavy feed rates, and ample coolant, are typically required to achieve the desired results.

Bhansali Enterprises Specifications Of Inconel AL-6XN Wires

Standard ASTM A276, A580 / ASME SA276, SA580
Dimensions ANSI/AWCI – 01 -1992 and ASTM E 2016-11 and RRW 360
Length Cut Lengths: 0.125" to 72"
No Limit on Spooled Lengths
Diameter 0.0004" to 0.040"
10 microns to 1.0 mm
Other Sizes on Request
Wire Density 8.89 g/cm3
Ultimate Strength (≥ MPa):
580-750
Wire Resistance (μΩ.m):
as standard
Wire Elongation (≥ %):
28-30
Surface Polished bright, Smooth, Bare, Enamel, PTFE, Ceramic, Plated
Tempers Tempers range from dead soft annealed to ultra spring temper
Welded Wire mesh Roll Width: 24inch, 36inch, 1Metre, 48inch, 72inch, or 84inch
Roll Length: 100feet or 150feet
Wire Mesh Weaving Methods plain weave, twill weave, dutch weave
Technique Cold Rolled, hot rolled
Condition M, Y, 1/2Hard
Offered in a wide range of packages including: Spool
Reel
Coil
Bobbin
Carrier
Custom packaging provided from as low as 1lb to 200lb tapered plastics
Form Filler Wire, Flat Wire, Coil Wire, Electrode Wire, Welding Wire, Wire mesh, Knitted wire mesh, filter mesh, mig wire, tig wire, spring wire, stranded and twisted wire
Test Certificates Tensile Testing
Hardness Testing
Metallographic Inspection / Investigation
Corrosion Testing
Chemical Analysis
Wrap Testing
Elevated Temperature Testing
Stress Rupture Testing (Creep)

LogoASME SA276 Inconel AL-6XN Wires Equivalent Grades

cta one shape 1
STANDARD WERKSTOFF NR. UNS
SS AL-6XN N08367

LogoChemical Composition of Inconel AL-6XN Wires

cta one shape 1
Grade C Mn P S Si Ni Cr Fe N Cu Mo
AL6XN .03 max 2.0 max .04 max .03 max 1.0 max 23.5 – 25.5 20.0 -22.0 Bal .18 – .25 .75 max 6.0 – 7.0

LogoMechanical Properties of Inconel AL-6XN Wires

cta one shape 1
Temp. °F (°C) Ult. Tensile Strength, psi .2% Yield Strength, psi Elongation in 2”, percent Charpy V-Notch Toughness, ft-lb
-450 (-268) 218,000 142,000 36 353*
-320 (-196) 196,000 107,000 49 85
-200 (-129) 100
70 (21) 108,000 53,000 47 140
200 (93) 99,900 49,400 47
400 (204) 903,000 40,400 46
600 (316) 86,000 36,300 47
800 (427) 87,000 36,000 48

Bhansali Enterprises Available Variations in Inconel AL-6XN Wires

Inconel AL-6XN Welding Wire

Welding Wire

Inconel AL-6XN Welding Wire

Inconel® Alloy AL-6XN Bright Wire

Bright Wire

Inconel® Alloy AL-6XN Bright Wire

Alloy AL-6XN Wire Spool

Wire Spool

Alloy AL-6XN Wire Spool

Nickel Alloy AL-6XN Wire Coil

Wire Coil

Nickel Alloy AL-6XN Wire Coil

AL-6XN Inconel Mig Wire

Mig Wire

AL-6XN Inconel Mig Wire

Inconel AL-6XN Woven Wire Mesh

Woven Wire Mesh

Inconel AL-6XN Woven Wire Mesh

Bhansali EnterprisesOther Types Of Inconel AL-6XN Wire

  • Inconel AL-6XN Cold Drawn Wire
  • Alloy AL-6XN Spring Wire
  • ASME SA276 Inconel AL-6XN Wire
  • AL-6XN Inconel Industrial Wires
  • Inconel AL-6XN Filler Wire
  • Inconel® Alloy AL-6XN Spool Wire
  • Inconel AL-6XN Welding Wire Price
  • Nickel Alloy AL-6XN Wire Rope
  • UNS N08367 Wire
  • Inconel Alloy AL-6XN Square Wire
  • Inconel AL-6XN Ultra Fine Wires
  • Grade AL-6XN Inconel Wire Rope
  • Inconel AL-6XN Wire Mesh Manufacturer
  • Inconel AL-6XN Tig Wire
  • Inconel® Alloy AL-6XN Spring Hard Quality Wire
  • AL-6XN Inconel Cold Heading Wire
  • Inconel Alloy AL-6XN Wire Mesh
  • Inconel AL-6XN Wires
  • Alloy AL-6XN Knitted Wire Mesh
  • ASTM A276 AL-6XN Inconel Wire
  • Inconel AL-6XN Weld Mesh
  • Inconel® Alloy AL-6XN Wire cloth
  • Inconel AL-6XN Coil Wire
  • Wire Mesh Inconel AL-6XN
  • Nickel Alloy AL-6XN Wire Bobbin
  • AL-6XN Inconel Welding Wire
  • ASTM A276 Inconel AL-6XN Woven Wire mesh
  • Inconel AL-6XN Wire
  • Inconel AL-6XN Netting Wiremesh
  • Inconel AL-6XN Crimped Wire Mesh
  • Alloy AL-6XN Mig Wire
  • Inconel AL-6XN Knitting Wire

Bhansali EnterprisesInconel AL-6XN Wires Technical Data

Bhansali EnterprisesInconel AL-6XN Wires Industrial Application

Inconel AL-6XN wires find extensive applications in demanding environments where corrosion resistance is of paramount importance. They are often used in the construction of heat exchangers, pipelines, and other components that come into contact with aggressive chemicals or fluids. Moreover, they are employed in desalination plants, pulp and paper processing, and pollution control systems, where their ability to withstand corrosive conditions is highly beneficial.

Shape
about three shape 4
Shape
Shape
  • Oil & Gas Industry

  • Power Plant Generation

  • Marine Industry

  • Petrochemical Industry

  • Chemical Industry

  • Aerospace Industry

  • Sugar Industry

Bhansali EnterprisesInconel AL-6XN Wires Price Details

Prices for Inconel AL-6XN Wire Products are very affordable. Please click on the request a quote button or Click Here to request the updated price list and ready stock information along with your requirement. Bhansali Enterprise Inconel AL-6XN maintains a stock of all standard items and can export them at the best price ASME SA276 AL-6XN Inconel Alloy Wires, Coil Wire, Ribbon Wires, Wiremesh, Wire Bobbin etc.
