Carbon Steel A106 Pipes and Tubes are low carbon steel alloys widely used in various industries due to their excellent mechanical properties and cost-effectiveness. These carbon steel grades are commonly used for high-temperature and high-pressure applications.

One of the key features of Carbon Steel A106 pipes and tubes is their high strength and toughness. They offer good tensile and yield strength, making them suitable for handling high-pressure fluids and gases in applications such as refineries, power plants, and petrochemical industries.

Carbon Steel A106 pipes and tubes are not inherently corrosion resistant like stainless steels or other alloys, but they are often used in applications where corrosion resistance is not the primary concern or where protective coatings can be applied to prevent corrosion. These alloys are commonly used for non-corrosive and low-corrosive environments.

The chemical composition of Carbon Steel A106 / A106 Pipes and Tubes typically includes approximately 0.35% carbon, along with small amounts of manganese, phosphorus, sulfur, and silicon. The low carbon content provides the alloy with good weldability and toughness.

Machining Carbon Steel A106 pipes and tubes is relatively easy, as they have lower carbon content, which makes them less hard compared to higher carbon steels. However, it is essential to use appropriate cutting tools and techniques to ensure precise fabrication.

Carbon Steel A106 Pipes & Tubes

Bhansali Enterprises Specifications Of Carbon Steel A106 Pipes and Tubes

Pipe Standard ASTM A106 ASME SA106
Tube Specifications ASTM A213, A269, A249, A511, A554 / ASME SA213, SA269, SA249, SA511, SA554
Pipe Dimension ANSI/ASME B36.19M, ANSI/ASME B36.10M
Seamless Pipe Sizes 1 / 2" NB - 16" NB
Welded Pipe Sizes 1 / 2" NB - 24" NB
EFW Pipe Size 6" NB - 24" NB
Seamless Tube Sizes 1 / 2" NB - 16" NB
Welded Tube Sizes 1 / 2" NB - 24" NB
Outside Diameter 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock
Manufacturing Process Seamless / Welded / ERW / Fabricated / CDW / 100% X Ray Welded
Pipe Shapes Hydraulic, Round, Rectangle, Square, Hex, Honed
Pipe Shapes Hydraulic, Round, Rectangle, Square, Hex, Honed
Schedule SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Outside Finish 2B, No.4, No.1, No.8 Mirror Finish for Carbon Steel Pipes, Finish as per customer Requirements
Length Single Random, Double Random, Standard & Cut length
End Types Plain Ends (PE) Threaded Ends (TE) Bevelled Ends (BW) Grooved Mechanical Joints or Grooved Ends, TBE (Treaded Both Ends)
Form Round, Square, Hollow, Rectangular, Instrumentation, High Pressure, Cold Rolled Coiled, Electropolish, Heat exchanger, Sanitary etc.

LogoChemical Composition of Carbon Steel A106 Pipes and Tubes

Shape
Grade C Si Mn P S Mo Ni Cr Cu V
A106 0.35 0.10–0.35 0.60–1.05 0.035 0.040 0.12 0.40 0.30 0.40 0.08

LogoMechanical Properties of Carbon Steel A106 Pipes & Tubes

cta one shape 1
Grade Yield Strength, Min (MPa ) Tensile Strength, Min (MPa) Elongation, min, %
Rockwell B (HR B) max Brinell (HB) max
A106 250 485 30

Bhansali Enterprises Available Variations in CS A106 Pipes & Tubes

Carbon Steel A106 Gr.B Seamless Pipe

Seamless Pipes

Carbon Steel A106 Gr.B Seamless Pipe

CS A106 Gr.C Welded Pipes

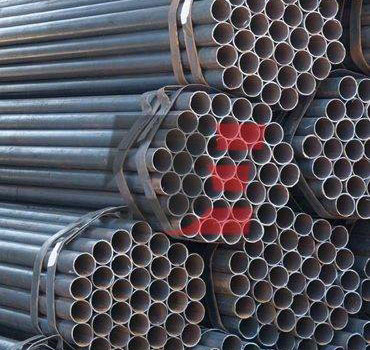

Welded Pipe

CS A106 Gr.C Welded Pipe

A53 Gr.B CS ERW Pipe

ERW Pipe

A53 Gr.B CS ERW Pipe

CS A333 Gr 1 EFW Pipe

EFW Pipe

CS A333 Gr 1 EFW Pipe

Carbon Steel A333 Gr 3 Polished Pipe

Polished Pipe

Carbon Steel A333 Gr 3 Polished Pipe

Carbon Steel A333 Gr 6 Seamless Tubes

Seamless Tubes

Carbon Steel A333 Gr 6 Seamless Tubes

A106 CS Welded Tube

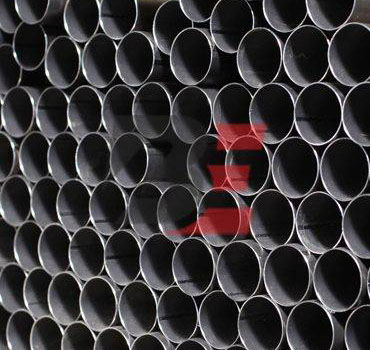

Welded Tube

A106 CS Welded Tube

LTCS ASTM A333 Grade 3 ERW Tube

ERW Tube

LTCS ASTM A333 Grade 3 ERW Tube

Carbon Steel A106 Electropolished Tube

Electropolished Tube

Carbon Steel A106 Electropolished Tube

Bhansali EnterprisesOther Types Of CS A106 Pipe & Tube

  • A333 GR 3 LTCS Square Pipe
  • A333 Gr 6 LTCS Carbon Steel Piping
  • Carbon Steel A333 Gr 3 Large Diameter Pipe
  • Carbon Steel A333 Gr. 1 Round Pipe
  • Carbon Steel A333 Gr 6 Schedule 80 Pipe
  • A53 GR B CS Welded Pipe
  • CS A106 Grade B Seamless Pipes
  • Carbon Steel A53 Gr.B Pipe
  • SA106 CS High Temperature Seamless Pipe
  • CS A106 Rectangular Pipes
  • ASTM A333 Gr.1 SMLS Pipes
  • Carbon Steel A106 Pipes
  • Carbon Steel A333 Gr 1 Industrial Pipes
  • Carbon Steel A106 Grade C Schedule 40 Pipe
  • Carbon Steel A106 Grade C Polished Tube
  • Carbon Steel A333 Gr 1 Spiral Welded Tube
  • ASME SA106 CS Welded Tubes
  • Carbon Steel A333 Gr 1 Tubing
  • Carbon Steel A106 Grade C Tubing Stock
  • Carbon Steel A106 Gr C Square Tube
  • Carbon Steel A106 Tube
  • A333 GR 3 LTCS ERW Tube
  • Carbon Steel A106 Welded Tube
  • ASME SA106 Carbon Steel ERW Tubes
  • ASME SA 106 Seamless Tubes
  • Carbon Steel A333 Gr. 1 Industrial Tubes
  • CS A106 Electric Resistance Welded Tubes
  • Carbon Steel A53 Gr.B Tubing

Bhansali EnterprisesCarbon Steel A106 Pipes and Tubes Technical Data

Bhansali EnterprisesCarbon Steel A106 Pipes & Tubing Industrial Application

Carbon Steel A106 pipes and tubes find applications in various industries where cost-effectiveness and reliable mechanical properties are essential. In the oil and gas industry, they are used for pipelines, flanges, and fittings in refineries and petrochemical plants. In power generation, these alloys are employed for boiler tubes and pressure vessels. They are also used in construction, HVAC systems, and general engineering applications.

Shape
about three shape 4
Shape
Shape
  • Oil & Gas Industry

  • Power Plant Generation

  • Marine Industry

  • Petrochemical Industry

  • Chemical Industry

  • Aerospace Industry

  • Sugar Industry

Bhansali EnterprisesCarbon Steel A106 Pipes & Tubes Price Details

Prices for Carbon Steel A106 Pipes and Tubes Products are very affordable. Please click on the request a quote button or Click Here to request the updated price list and ready stock information along with your requirement. Bhansali Enterprise CS A106 maintains a stock of all standard items and can export them at the best price ASME SA106 CS Seamless Pipe, Welded Tube, Seamless Tube, Welded Pipe, Round Pipe, Polished Tube, ERW Pipe, ERW Tube etc.
