Monel K500 is a nickel-copper alloy that is an enhanced version of Monel 400. Monel K500 Wires exhibit even higher strength and hardness while maintaining excellent corrosion resistance, making them suitable for various demanding applications.

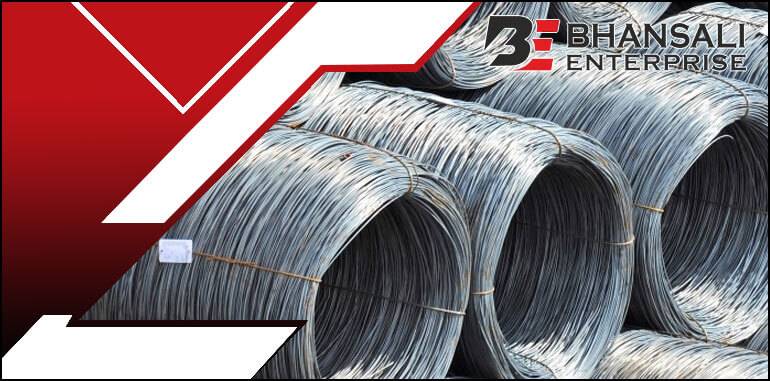

Monel K-500 Wires

Bhansali Enterprises Specifications Of Monel K-500 Wires

Standard ASTM B865 ASME SB865
Dimensions ANSI/AWCI – 01 -1992 and ASTM E 2016-11 and RRW 360
Length Cut Lengths: 0.125" to 72"
No Limit on Spooled Lengths
Diameter 0.0004" to 0.040"
10 microns to 1.0 mm
Other Sizes on Request
Wire Density 8.89 g/cm3
Ultimate Strength (≥ MPa):
580-750
Wire Resistance (μΩ.m):
as standard
Wire Elongation (≥ %):
28-30
Surface Polished bright, Smooth, Bare, Enamel, PTFE, Ceramic, Plated
Tempers Tempers range from dead soft annealed to ultra spring temper
Welded Wire mesh Roll Width: 24inch, 36inch, 1Metre, 48inch, 72inch, or 84inch
Roll Length: 100feet or 150feet
Wire Mesh Weaving Methods plain weave, twill weave, dutch weave
Technique Cold Rolled, hot rolled
Condition M, Y, 1/2Hard
Offered in a wide range of packages including: Spool
Reel
Coil
Bobbin
Carrier
Custom packaging provided from as low as 1lb to 200lb tapered plastics
Form Filler Wire, Flat Wire, Coil Wire, Electrode Wire, Welding Wire, Wire mesh, Knitted wire mesh, filter mesh, mig wire, tig wire, spring wire, stranded and twisted wire
Test Certificates Tensile Testing
Hardness Testing
Metallographic Inspection / Investigation
Corrosion Testing
Chemical Analysis
Wrap Testing
Elevated Temperature Testing
Stress Rupture Testing (Creep)

LogoASME SB865 Monel K-500 Wires Equivalent Grades

cta one shape 1
STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Monel K500 2.4375 N05500

LogoChemical Composition of Monel K-500 Wires

cta one shape 1
Grade C Mn Si Cu S Cr Fe Ni N
Monel K500  0.25 max 1.50 max  0.50 max 27.0-33.0 0.10max  – 0.5-2.0 max 63.00 min  –

LogoMechanical Properties of Monel K-500 Wires

cta one shape 1
Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Monel K500  8.44 g/cm3  1350 °C (2460 °F)  Psi – 1,60,000 , MPa – 1100 Psi – 115000 , MPa – 790 20%

Bhansali EnterprisesMonel K-500 Wires Product Features

Bhansali Enterprises Available Variations in Monel K-500 Wires

Monel K-500 Welding Wire

Welding Wire

Monel K-500 Welding Wire

Monel® Alloy K-500 Bright Wire

Bright Wire

Monel® Alloy K-500 Bright Wire

Alloy K-500 Wire Spool

Wire Spool

Alloy K-500 Wire Spool

Nickel Alloy K-500 Wire Coil

Wire Coil

Nickel Alloy K-500 Wire Coil

K-500 Monel Mig Wire

Mig Wire

K-500 Monel Mig Wire

Monel K-500 Woven Wire Mesh

Woven Wire Mesh

Monel K-500 Woven Wire Mesh

Bhansali EnterprisesOther Types Of Monel K-500 Wire

  • Monel® K-500 Welding Wire
  • K-500 Monel Industrial Wires
  • Monel K-500 Filler Wire
  • Monel K-500 Wire Mesh Manufacturer
  • Monel K-500 Ultra Fine Wires
  • K-500 Monel Cold Heading Wire
  • Monel K-500 Cold Drawn Wire
  • Grade K-500 Monel Wire Rope
  • ASME SB865 Monel K-500 Wire
  • UNS N05500 Wire
  • Monel® Alloy K-500 Spool Wire
  • Monel K-500 Tig Wire
  • Monel Alloy K-500 Square Wire
  • Nickel Alloy K-500 Wire Rope
  • Alloy K-500 Spring Wire
  • Monel K500 Wire Price
  • Alloy K-500 Knitted Wire Mesh
  • Nickel Alloy K-500 Wire Bobbin
  • K-500 Monel Welding Wire
  • Wire Mesh Monel K-500
  • Monel® K-500 Crimped Wire Mesh
  • Monel K-500 Wire
  • ASTM B865 Monel K-500 Woven Wire mesh
  • Alloy K-500 Mig Wire
  • 2.4375 Wire
  • Monel K-500 Knitting Wire
  • Monel® K-500 Wire
  • ASTM B865 K-500 Monel Wire
  • Monel K-500 Weld Mesh
  • Monel Alloy K-500 Wire Mesh
  • Monel K-500 Netting Wiremesh
  • Monel K500 Wire Price in India

Bhansali EnterprisesMonel K-500 Wires Technical Data

Bhansali EnterprisesMonel K-500 Wires Industrial Application

Monel K500 wires find applications in various industries that demand high strength and excellent corrosion resistance. They are commonly used in marine environments for components such as pump shafts, fasteners, and valve stems due to their exceptional resistance to seawater corrosion. In addition, the aerospace industry employs Monel K500 wires for aircraft and missile components that require strength and durability. Their resistance to sulfuric acid makes them suitable for chemical processing applications. Furthermore, Monel K500 wires are utilized in oil and gas production, particularly for components exposed to sour gas environments containing hydrogen sulfide.

Shape
about three shape 4
Shape
Shape
  • Oil & Gas Industry

  • Power Plant Generation

  • Marine Industry

  • Petrochemical Industry

  • Chemical Industry

  • Aerospace Industry

  • Sugar Industry

Bhansali EnterprisesMonel K-500 Wires Price Details

Prices for Monel K-500 Wire Products are very affordable. Please click on the request a quote button or Click Here to request the updated price list and ready stock information along with your requirement. Bhansali Enterprise Monel K-500 maintains a stock of all standard items and can export them at the best price ASME SB865 K-500 Monel Alloy Wires, Coil Wire, Ribbon Wires, Wiremesh, Wire Bobbin etc.
