Stainless Steel 347 is a versatile austenitic stainless steel alloy that contains a higher content of niobium, which enhances its overall performance in various applications. Stainless Steel 347 Wires are a specific form of this alloy, known for their excellent mechanical properties and corrosion resistance.

The key features of Stainless Steel 347 Wires include their exceptional resistance to high temperatures, making them ideal for use in elevated heat environments. The presence of niobium also provides enhanced intergranular corrosion resistance, reducing the risk of sensitization and subsequent stress corrosion cracking.

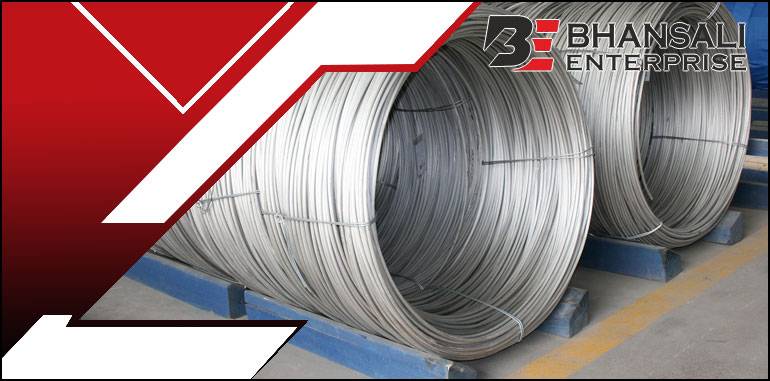

 Stainless Steel 347 Wires

The chemical composition of Stainless Steel 347 typically includes approximately 17-19% chromium, 9-13% nickel, 10-12% columbium (niobium), and tantalum combined, with trace amounts of other elements. The columbium and tantalum additions aid in stabilizing the material and preventing sensitization during welding or high-temperature usage.

The chemical composition, especially the addition of niobium, gives Stainless Steel 347 wires their excellent welding and forming properties. However, their machining can be slightly more challenging than other stainless steel grades due to the alloy's work-hardening rate. It is recommended to use slow speeds and constant feeds while machining to achieve the best results.

Bhansali Enterprises Specifications Of SS 347 Wires

Standard ASTM A580, A313, A555, A493 / ASME SA580, SA313, SA555, SA493, AMS 5514
Dimensions ANSI/AWCI – 01 -1992 and ASTM E 2016-11 and RRW 360
Length Cut Lengths: 0.125" to 72"
No Limit on Spooled Lengths
Diameter 0.0004" to 0.040"
10 microns to 1.0 mm
Other Sizes on Request
Wire Density 8.89 g/cm3
Ultimate Strength (≥ MPa):
580-750
Wire Resistance (μΩ.m):
as standard
Wire Elongation (≥ %):
28-30
Surface Polished bright, Smooth, Bare, Enamel, PTFE, Ceramic, Plated
Tempers Tempers range from dead soft annealed to ultra spring temper
Welded Wire mesh Roll Width: 24inch, 36inch, 1Metre, 48inch, 72inch, or 84inch
Roll Length: 100feet or 150feet
Wire Mesh Weaving Methods plain weave, twill weave, dutch weave
Technique Cold Rolled, hot rolled
Condition M, Y, 1/2Hard
Offered in a wide range of packages including: Spool
Reel
Coil
Bobbin
Carrier
Custom packaging provided from as low as 1lb to 200lb tapered plastics
Form Filler Wire, Flat Wire, Coil Wire, Electrode Wire, Welding Wire, Wire mesh, Knitted wire mesh, filter mesh, mig wire, tig wire, spring wire, stranded and twisted wire
Test Certificates Tensile Testing
Hardness Testing
Metallographic Inspection / Investigation
Corrosion Testing
Chemical Analysis
Wrap Testing
Elevated Temperature Testing
Stress Rupture Testing (Creep)

LogoASME SA580 347 Stainless Steel Wires Equivalent Grades

cta one shape 1
Grade UNS No Old British Euronorm Swedish SS Japanese JIS
BS En No Name
347 S31703 X6CrNiNb18-10 1.4550 SUS 347

LogoChemical Composition of Stainless Steel 347 Wires

cta one shape 1
Grade C Mn Si P S Cr Mo Ni N
347 min. 17.0 9.0
max. 0.08 2.0 1.0 0.040 0.030 20.0 13.0

LogoMechanical Properties of SS 347 Wires

cta one shape 1
Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
347 515 205 40 92 201

Bhansali Enterprises Available Variations in Stainless Steel 347 Wires

Stainless Steel 347 Welding Wire

Welding Wire

SS 347 Welding Wire

Stainless Steel 347 Bright Wire

Bright Wire

SS 347 Bright Wire

Stainless Steel 347 Wire Spool

Wire Spool

SS 347 Wire Spool

Stainless Steel 347 Wire Coil

Wire Coil

Stainless Steel 347 Wire Coil

Stainless Steel 347 Mig Wire

Mig Wire

Stainless Steel 347 Mig Wire

Stainless Steel 347 Woven Wire Mesh

Woven Wire Mesh

SS 347 Woven Wire Mesh

Bhansali EnterprisesOther Types Of Stainless Steel 347 Wire

  • Stainless Steel 347 Tig Wire
  • Grade 347 SS Wire Rope
  • 347 Stainless Steel Wire Rope
  • Stainless Steel 347 Square Wire
  • 347 Stainless Steel Industrial Wires
  • 347 Stainless Steel Cold Heading Wire
  • UNS S31703 Wire
  • SS 347 Wire Mesh Manufacturer
  • 347 Stainless Steel Ultra Fine Wires
  • ASME SA313 Stainless Steel 347 Wire
  • SS 347 Spring Wire
  • SS 347 Spring Hard Quality Wire
  • Stainless Steel 347 Cold Drawn Wire
  • 347 Stainless Steel Spool Wire
  • 347 Stainless Steel Wire Bobbin
  • Wire Mesh Stainless Steel 347
  • SS 347 Welding Wire
  • SS 347 Knitted Wire Mesh
  • SS 347 Knitting Wire
  • 347 Stainless Steel Wire Mesh
  • Stainless Steel 347 Crimped Wire Mesh
  • SS 347 Mig Wire
  • 347 Stainless Steel Wire cloth
  • 1.4550 Wire
  • ASTM A313 347 Stainless Steel Wire
  • 347 Stainless Steel Weld Mesh
  • Stainless Steel 347 Netting Wiremesh
  • ASTM A580 Stainless Steel 347 Woven Wire mesh

Bhansali EnterprisesStainless Steel 347 Wires Technical Data

Bhansali EnterprisesSS 347 Wires Industrial Application

Stainless Steel 347 wires find applications in various industries due to their unique properties. They are commonly used in the manufacturing of heating elements, boiler tubes, and other high-temperature applications. Their resistance to oxidation and corrosion makes them suitable for use in chemical and petrochemical industries, where exposure to corrosive environments is common. Additionally, they are utilized in the aerospace and aviation sectors for parts subjected to high-temperature and corrosive conditions.

Shape
about three shape 4
Shape
Shape
  • Oil & Gas Industry

  • Power Plant Generation

  • Marine Industry

  • Petrochemical Industry

  • Chemical Industry

  • Aerospace Industry

  • Sugar Industry

Bhansali EnterprisesStainless Steel 347 Wires Price Details

Prices for SS 347 Wire Products are very affordable. Please click on the request a quote button or Click Here to request the updated price list and ready stock information along with your requirement. Bhansali Enterprise SS 347 maintains a stock of all standard items and can export them at the best price ASME SA580 347 Stainless Steel Wires, Coil Wire, Ribbon Wires, Wiremesh, Wire Bobbin etc.
