Stainless Steel ER308L Wire is a popular welding wire used in various applications due to its excellent characteristics. It is an austenitic stainless steel wire with low carbon content, primarily designed for welding 18Cr-8Ni austenitic stainless steels like AISI 304 and 304L. The "L" in ER308L indicates that it has a lower carbon content than ER308, making it more suitable for applications where post-welding annealing is not possible or practical.

The key features of ER308L Wires include high tensile strength, good ductility, and low susceptibility to intergranular corrosion, making them well-suited for welding in various environments. These wires offer excellent weldability and ease of operation, providing stable arc characteristics and a smooth bead appearance.

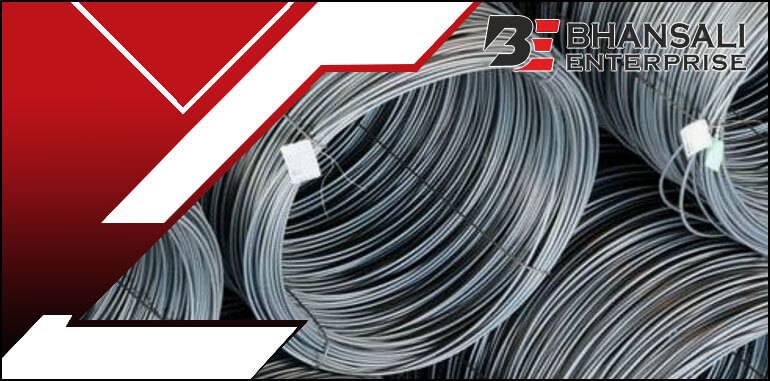

 Stainless Steel ER308L Wires

In terms of corrosion resistance, ER308L wires are particularly resistant to atmospheric corrosion, organic and inorganic acids, and many chloride-bearing environments. This makes them suitable for applications in industries such as chemical processing, food and beverage, petrochemical, and marine environments.

The chemical composition of Stainless Steel ER308L wires typically consists of approximately 19-21% chromium and 9-11% nickel. The addition of 0.03% maximum carbon ensures a low-carbon weld metal, preventing sensitization and carbide precipitation that could lead to intergranular corrosion.

Machining of ER308L wires is generally trouble-free due to their excellent ductility and consistent welding performance. This allows for precise welds with minimal defects, making them a reliable choice for various welding processes like Gas Tungsten Arc Welding (GTAW) or Tungsten Inert Gas (TIG) welding.

Bhansali Enterprises Specifications Of SS ER308L Wires

Standard ASTM A580, A313, A555, A493 / ASME SA580, SA313, SA555, SA493, AMS 5514
Dimensions ANSI/AWCI – 01 -1992 and ASTM E 2016-11 and RRW 360
Length Cut Lengths: 0.125" to 72"
No Limit on Spooled Lengths
Diameter 0.0004" to 0.040"
10 microns to 1.0 mm
Other Sizes on Request
Wire Density 8.89 g/cm3
Ultimate Strength (≥ MPa):
580-750
Wire Resistance (μΩ.m):
as standard
Wire Elongation (≥ %):
28-30
Surface Polished bright, Smooth, Bare, Enamel, PTFE, Ceramic, Plated
Tempers Tempers range from dead soft annealed to ultra spring temper
Welded Wire mesh Roll Width: 24inch, 36inch, 1Metre, 48inch, 72inch, or 84inch
Roll Length: 100feet or 150feet
Wire Mesh Weaving Methods plain weave, twill weave, dutch weave
Technique Cold Rolled, hot rolled
Condition M, Y, 1/2Hard
Offered in a wide range of packages including: Spool
Reel
Coil
Bobbin
Carrier
Custom packaging provided from as low as 1lb to 200lb tapered plastics
Form Filler Wire, Flat Wire, Coil Wire, Electrode Wire, Welding Wire, Wire mesh, Knitted wire mesh, filter mesh, mig wire, tig wire, spring wire, stranded and twisted wire
Test Certificates Tensile Testing
Hardness Testing
Metallographic Inspection / Investigation
Corrosion Testing
Chemical Analysis
Wrap Testing
Elevated Temperature Testing
Stress Rupture Testing (Creep)

LogoChemical Composition of Stainless Steel ER308L Wires

cta one shape 1
C Cr Ni Mo Mn Si P S Cu
0.03 19.5-22.0 9.0-11.0 0.75 1.0-2.5 0.65-1.00 0.03 0.03 0.75

LogoMechanical Properties of SS ER308L Wires

cta one shape 1
Tensile Strength (psi) 86,000 psi (593 MPa)
Yield Strength (psi) 57,000 psi (393 MPa)
Elongation (%) 42%

Bhansali Enterprises Available Variations in Stainless Steel ER308L Wires

Stainless Steel ER308L Welding Wire

Welding Wire

SS ER308L Welding Wire

Stainless Steel ER308L Bright Wire

Bright Wire

SS ER308L Bright Wire

Stainless Steel ER308L Wire Spool

Wire Spool

SS ER308L Wire Spool

Stainless Steel ER308L Wire Coil

Wire Coil

SS ER308L Wire Coil

Stainless Steel ER308L Mig Wire

Mig Wire

Stainless Steel ER308L Mig Wire

Stainless Steel ER308L Woven Wire Mesh

Woven Wire Mesh

SS ER308L Woven Wire Mesh

Bhansali EnterprisesOther Types Of Stainless Steel ER308L Wire

  • SS ER308L Wire
  • ASME SA313 Stainless Steel ER308L Wire
  • Grade ER308L SS Wire Rope
  • ER308L Stainless Steel Cold Heading Wire
  • Stainless Steel ER308L Tig Wire
  • ER308L Stainless Steel Industrial Wires
  • ER308L Stainless Steel Wire Rope
  • Stainless Steel ER308L Square Wire
  • ER308L Stainless Steel Ultra Fine Wires
  • ER308L Stainless Steel Spool Wire
  • ER308L Stainless Steel Wire cloth
  • Stainless Steel ER308L Cold Drawn Wire
  • ASTM A313 ER308L Stainless Steel Wire
  • Stainless Steel ER308L Wire
  • SS ER308L Welding Wire
  • SS ER308L Spring Hard Quality Wire
  • ER308L Stainless Steel Wire Bobbin
  • SS ER308L Mig Wire
  • SS ER308L Spring Wire Manufacturer
  • Stainless Steel ER308L Knitting Wire

Bhansali EnterprisesStainless Steel ER308L Wires Technical Data

Bhansali EnterprisesSS ER308L Wires Industrial Application

The applications of ER308L wires are diverse, including but not limited to the fabrication and repair of stainless steel components in the automotive, aerospace, and construction industries. They are commonly used for joining stainless steel structures, storage tanks, pipes, and other equipment where corrosion resistance and structural integrity are crucial.

Shape
about three shape 4
Shape
Shape
  • Oil & Gas Industry

  • Power Plant Generation

  • Marine Industry

  • Petrochemical Industry

  • Chemical Industry

  • Aerospace Industry

  • Sugar Industry

Bhansali EnterprisesStainless Steel ER308L Wires Price Details

Prices for SS ER308L Wire Products are very affordable. Please click on the request a quote button or Click Here to request the updated price list and ready stock information along with your requirement. Bhansali Enterprise SS ER308L maintains a stock of all standard items and can export them at the best price ASME SA580 ER308L Stainless Steel Wires, Coil Wire, Ribbon Wires, Wiremesh, Wire Bobbin etc.
